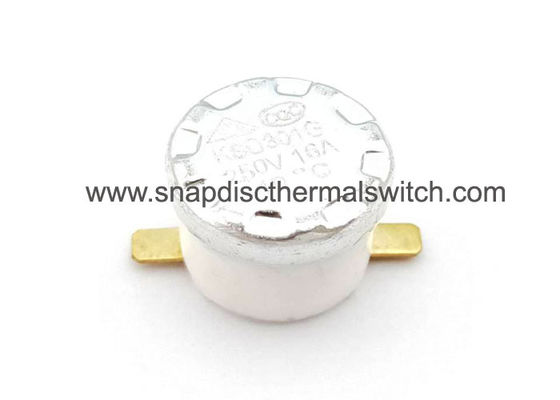

High Accuracy Snap Disc Thermostat Switch 50 / 60 Hz Frequency KSD301

High Accuracy Snap Disc Thermostat Switch 50 / 60 Hz Frequency KSD301

High Accuracy Snap Disc Thermostat Switch 50 / 60 Hz Frequency KSD301
High Accuracy Snap Disc Thermostat Switch 50 / 60 Hz Frequency KSD301 High Accuracy Snap Disc Thermostat Switch 50 / 60 Hz Frequency KSD301 High Accuracy Snap Disc Thermostat Switch 50 / 60 Hz Frequency KSD301 High Accuracy Snap Disc Thermostat Switch 50 / 60 Hz Frequency KSD301

Large Image :  High Accuracy Snap Disc Thermostat Switch 50 / 60 Hz Frequency KSD301 Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: Yusheng
Certification: CQC. TUV, VDE, UL, ROHS, REACH,CB
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: 1 box=2000pcs=100pcs*20 bags,Box size: 470*340*220mm; 1 box=2000pcs=400pcs*5 bags,Box size: 470*340*220mm
Delivery Time: 7-10 work days
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000 Pcs Per Month
Detailed Product Description
Model: KSD301 Reset Type: Auto Reset
Rated Volts & Amps: 250V AC 10A / 16A, 125V 10A / 16A Contact Type: Normally Closed Or Normally Open
Temperature Range: 0~250℃ Life Cycle: 100,000 Cycles
Frequency: 50 / 60 Hz Diameter Of Bimetal Disc: 12.8 Mm / (1/2)
High Light:

snap disc thermostat switch

,

bimetal snap disc thermostat

125A 10A 15.5 Deg C KSD301 Auto Reset Snap Disc Thermal Switch with UL, TUV



Quick Detail:

Model KSD301
Reset Type Auto Reset
  Single Pole,Single Throw(SPST)
Body Material: Bakelite
Rated Voltage & Current 250V AC 10A/16A
Terminal Brass 2.8mm×10+/-0.2mm length×0.5mm thick,Horizontal
Contact Type

Normally Closed(Open on Rise) or Normally Open(Close on Rise)

Operating Temperature Range

0~150℃ (Bakelite Body),0~250℃ (Ceramic Body)

Temperature differentials 8.5~55℃ (difference between off and on temperatures)
Temperature tolerance ±3.0℃, ±5.0℃, ±8.0℃, ±10.0℃
Contact Resistance ≤50mΩ
Insulation Resistance ≥100MΩ
Dielectric Strength ≥1500V
Life Cycle 100,000 Cycles
Certificate CQC,TUV,UL,VDE,ROHS,REACH



Description:



KSD301 / T1 / 33 series Snap Disc Thermal Switch is a snap-action thermostat with a bi-metal disc as the temeprature sensing element. It can be reseted automatically. Its main working principle is to control the temperature by opening or closing the bi-metal strip. It stays at normally closed/normally open status, it opens/closes when temeprature rising and closes/opens when temperature decreasing. It has the characteristics of snap action,high accuracy, long life cycle.It is widely used in rice cooker, microwave oven, electric water boiler,room heater, egg boiler and electric steamer,etc.



Specifications:



1. Dimensional Outline

High Accuracy Snap Disc Thermostat Switch 50 / 60 Hz Frequency KSD301 0



2. BOM



No. Parts Name Qty. Material Remark
01 Stationary Contact 1 AgNi/Cu(T2) Gold Plated
02 Stationary Arm 1 Brass
03 Movable Contact 1 AgNi/Cu(T2) Gold Plated
04 Case 1 EC
05 Movable Arm 1 Alloy copper
06 Top Cover 1 EC
07 Bimetal Disc 1 Bimetal
08 Short Rivet 1 Copper
09 Long Rivet 1 Copper
10 Terminal 2 Brass
11 Cap 1 Aluminium
12 Actuator Pin 1 Ceramic



3. Action Temperature Table

Standard Temperature Sheet
KSD301
Action Temperature Reset Temperature Action Temperature Reset Temperature
45±3℃ 35±5℃ 145±5℃ 125±7℃
50±3℃ 40±5℃ 150±5℃ 130±7℃
55±3℃ 45±5℃ 155±5℃ 135±7℃
60±3℃ 50±5℃ 160±5℃ 140±8℃
65±3℃ 50±5℃ 165±6℃ 145±8℃
70±3℃ 55±5℃ 170±6℃ 150±8℃
75±3℃ 60±5℃ 175±6℃ 155±8℃
80±3℃ 65±5℃ 180±7℃ 160±10℃
85±3℃ 70±5℃ 185±7℃ 155±10℃
90±3℃ 75±5℃ 190±7℃ 160±10℃
95±3℃ 80±5℃ 195±7℃ 165±10℃
100±4℃ 85±6℃ 200±8℃ 170±10℃
105±4℃ 85±6℃ 205±8℃ 175±10℃
110±4℃ 90±6℃ 210±8℃ 180±10℃
115±5℃ 95±6℃ 215±10℃ 185±10℃
120±5℃ 100±6℃ 220±10℃ 190±10℃
125±5℃ 105±6℃ 230±10℃ 200±10℃
130±5℃ 110±6℃ 240±10℃ 205±12℃
135±5℃ 115±6℃ 250±10℃ 210±15℃
140±5℃ 120±7℃
Remark :
0-60℃±5℃: Reset Temperature=Action Temperature-10℃
60-120℃±5℃: Reset Temperature=Action Temperature-15℃
120-160℃±5℃: Reset Temperature=Action Temperature-20℃
160-200℃±7℃: Reset Temperature=Action Temperature-25℃
200-250℃(±8℃-10℃): Reset Temperature=Action Temperature-30℃/40℃



Applications:



Rice Cooker, Microwave Oven, Oven, Fryer, Egg Boiler, Electric Steamer etc.

Electric Water Boiler, Room Heater,Waffle Baker, Refrigerator, etc,

Air Compressor, Ford Fuel Filter, Water Tank, Frostproof Closet, High-wall Air Conditioning,

  Ducted Ceiling Air Conditioning, etc.

High Accuracy Snap Disc Thermostat Switch 50 / 60 Hz Frequency KSD301 1

Competitive Advantages:



1. Small size and expedient installation

2. High temeprature resistance

3. High reliability

4. Long life cycles

5. ROHS compliant

6. Wide application
