High Reliabilty EMI EMC Filter For Energy Efficient Drive System PE2000-6-01

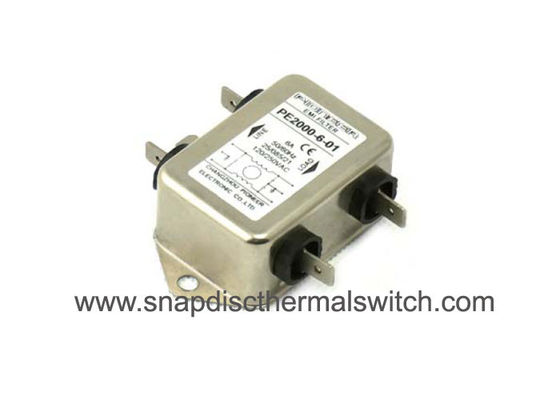

PE2000-6-01 250V6A Single Phase EMI EMC Filter for Energy-efficient Drive System

Quick Details:

Description:

EMI MEC filter, also known as electromagnetic interference filter, network filter, network noise filter and so on, or collectively known as EMI filter.The power supply EMI filter is a low-pass filter, which transmits the dc power, 50Hz or 400Hz power to the equipment without attenuation, greatly attenuating the incoming EMI signal through the power supply, and protecting the equipment from its harm.At the same time, EMI signals generated by the equipment can be effectively controlled to prevent it from entering the power grid, polluting the electromagnetic environment and harming other equipment.EMI filter of power supply is an indispensable component to help electromagnetic equipment and systems meet electromagnetic compatibility standards, such as IEC, FCC, VDE, mil-std-461, GB9254 and GB6833.PE2000-6-01 has various terminal options of faston, screw and wire, so it is very easy to install. Its rated currents from 1A to 10A.

Application:

1. Office Equipment: Printers; photocopiers; fax machine; computer etc

2. Household Equipment: Soymilk; coffee machine; Microwave etc
3. Single Phase Motor Drive,Power Supply,Led Drive,Inverter,Converter etc
4. Other : Biological safety cabinets;Air sterilizer;Sterilizer;Diagnostic System;Water Purifier;Fitness Equipment etc
5. B type for Medical Equipment

Specifications:

1. Outline Drawing and Dimensions:

All dimensions in mm; 1 inch=25.4mm

2. Electrical Schematic:

3. Filter Selection Table:

4. EMI EMC Filter Packaging:

Packaging Details
1. Inner: blow moulding plate
2. Outer: strong A-A 5 layer carton packing with shock absorbing PE foam filling to protect the EMI/EMC filter
3. Customized packaging acceptable
Port: Shenzhen,China

Competitive Advantage:

● General purpose filtering performance

● Easy and fast chassis mounting

● Low leakage current and high quality components ensure the safety and reliabilty of filters.

● Optional medical versions(B type)

● EVarious terminal options: faston/screw/wire

Tag:

Power supply EMI filter, EMI Power line filter, Power line filter, Noise power line filter, Rejector, Electromagnetic interference filter,

Network filter, Network noise filter
