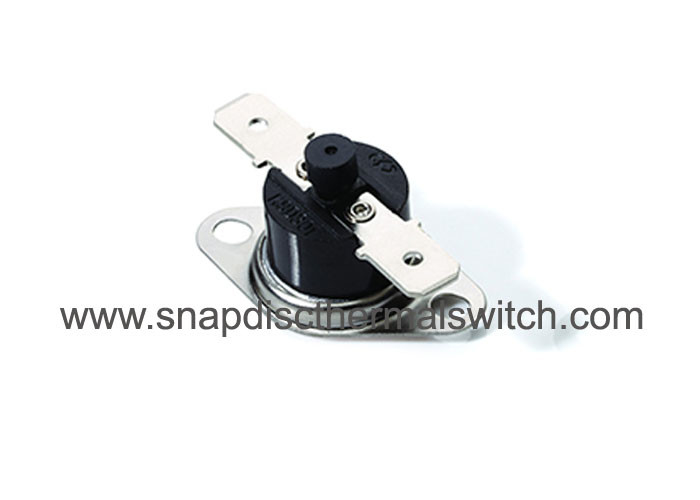

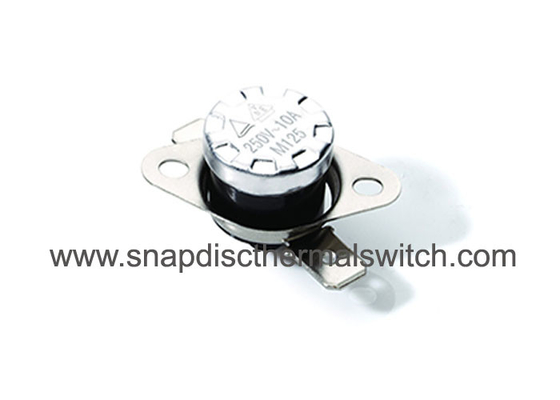

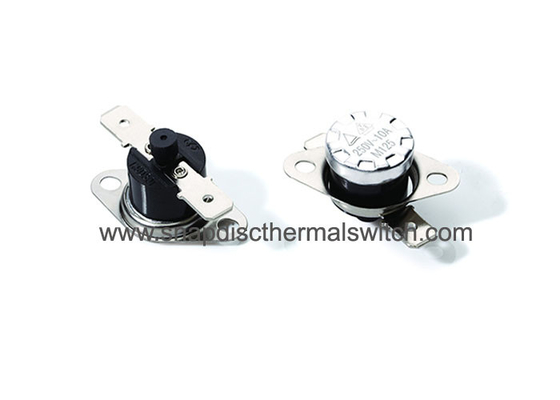

Single Pole Snap Action Temperature Switch High Temperature Resistance for Cooker

Single Pole Snap Action Temperature Switch High Temperature Resistance for Cooker

Single Pole Snap Action Temperature Switch High Temperature Resistance for Cooker
Single Pole Snap Action Temperature Switch High Temperature Resistance for Cooker Single Pole Snap Action Temperature Switch High Temperature Resistance for Cooker Single Pole Snap Action Temperature Switch High Temperature Resistance for Cooker

Large Image :  Single Pole Snap Action Temperature Switch High Temperature Resistance for Cooker Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: Yusheng
Certification: CQC. TUV, VDE, UL, ROHS, REACH,CB
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: 1000PCS or 2000PCS Per Carton, Carton Size: 280*270*320mm
Delivery Time: 7-10 work days
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000 Pcs Per Month
Detailed Product Description
Product Name: Snap Disc Thermal Switch Model: KSD301
Reset Type: Auto Reset Rated Volts & Amps: 250V AC 10A/16A, 125V AC 10A/16A
Contact Type: Normally Closed Or Normally Open Temperature Range: 0~250℃
Diameter Of Bimetal Disc: 12.8 Mm (1/2) Cover: Fixed/ Moveable / Screw
Life Cycle: 100,000 Cycles Insulation Resistance:: More Than 100MΩ
Contact Resistance: Less Than 50mΩ Case: Bakelite / Ceramic
High Light:

snap disc thermostat switch

,

bimetal snap disc thermostat

Single Pole Snap Action Temperature Switch High Temperature Resistance for Cooker



Quick Detail:

Model KSD301
Reset Type Auto Reset
  Single Pole,Single Throw(SPST)
Body Material: Bakelite or Ceramic
Rated Voltage & Current 250V AC 10A/16A
Contact Type

Normally Closed(Open on Rise) or Normally Open(Close on Rise)

Operating Temperature Range

0~150℃ (Bakelite Body),0~250℃ (Ceramic Body)

Temperature differentials 8.5~55℃ (difference between off and on temperatures)
Temperature tolerance ±3.0℃, ±5.0℃, ±8.0℃, ±10.0℃
Contact Resistance ≤50mΩ
Insulation Resistance ≥100MΩ
Dielectric Strength ≥1500V
Life Cycle 100,000 Cycles
Certificate CQC,TUV,UL,VDE,ROHS,REACH



Description:



KSD301 series Snap Disc Thermal Switch is a snap-action thermostat with a bi-metal disc as the temeprature sensing element. It can be reseted automatically. Its main working principle is to control the temperature by opening or closing the bi-metal strip. It stays at normally closed/normally open status, it opens/closes when temeprature rising and closes/opens when temperature decreasing. It has the characteristics of snap action,high accuracy, long life cycle.It is widely used in rice cooker, microwave oven, electric water boiler,room heater, egg boiler and electric steamer,etc.



Applications:

● Rice Cooker, Microwave Oven, Oven, Fryer, Egg Boiler, Electric Steamer etc.

 Electric Water Boiler, Room Heater,Waffle Baker etc.

Single Pole Snap Action Temperature Switch High Temperature Resistance for Cooker 0



Specifications:



1. Dimensional Outline



Single Pole Snap Action Temperature Switch High Temperature Resistance for Cooker 1 Single Pole Snap Action Temperature Switch High Temperature Resistance for Cooker 2
Single Pole Snap Action Temperature Switch High Temperature Resistance for Cooker 3 Single Pole Snap Action Temperature Switch High Temperature Resistance for Cooker 4



2. Technical Requirements



Model KSD301
OFF Temprature  125±5℃
Rated Voltage & Current 250V AC 10A
Reset Type Manual Reset
Contact Type Normally Closed
Body Material Bakelite
Bracket Without Bracket
Terminal 6.3*0.8mm, Horizontal
Test Voltage ≥ 1500V / min (Normality)
Product Executive Standard:

UL873, CSA C22.2 NO 2493,EN60730-1 2000+AⅡ, EN60730-2-9:2002,

GB14536.1-2008 idt IEC 730-1, GB14536.10-2008 idt IEC 730-2-9-1992,



3. Action Temperature Table

Standard Temperature Sheet
KSD301
Action Temperature Reset Temperature Action Temperature Reset Temperature
45±3℃ 35±5℃ 145±5℃ 125±7℃
50±3℃ 40±5℃ 150±5℃ 130±7℃
55±3℃ 45±5℃ 155±5℃ 135±7℃
60±3℃ 50±5℃ 160±5℃ 140±8℃
65±3℃ 50±5℃ 165±6℃ 145±8℃
70±3℃ 55±5℃ 170±6℃ 150±8℃
75±3℃ 60±5℃ 175±6℃ 155±8℃
80±3℃ 65±5℃ 180±7℃ 160±10℃
85±3℃ 70±5℃ 185±7℃ 155±10℃
90±3℃ 75±5℃ 190±7℃ 160±10℃
95±3℃ 80±5℃ 195±7℃ 165±10℃
100±4℃ 85±6℃ 200±8℃ 170±10℃
105±4℃ 85±6℃ 205±8℃ 175±10℃
110±4℃ 90±6℃ 210±8℃ 180±10℃
115±5℃ 95±6℃ 215±10℃ 185±10℃
120±5℃ 100±6℃ 220±10℃ 190±10℃
125±5℃ 105±6℃ 230±10℃ 200±10℃
130±5℃ 110±6℃ 240±10℃ 205±12℃
135±5℃ 115±6℃ 250±10℃ 210±15℃
140±5℃ 120±7℃
Remark :
0-60℃±5℃: Reset Temperature=Action Temperature-10℃
60-120℃±5℃: Reset Temperature=Action Temperature-15℃
120-160℃±5℃: Reset Temperature=Action Temperature-20℃
160-200℃±7℃: Reset Temperature=Action Temperature-25℃
200-250℃(±8℃-10℃): Reset Temperature=Action Temperature-30℃/40℃



Competitive Advantage:



1. Small size and expedient installation

2. High temeprature resistance

3. High reliability

4. Long life cycles

5. ROHS compliant

6. Wide application



Tag:



Bimetal Disc Thermal Switch, Snap-action Thermostat, Bimetal Thermostat, Temperature Switch, Snap-action Temperature Switch,

Temperature Cutoff Switch, Thermal Cutout Switch,Temperature Controller, Snap Action Bimetal Disc Thermostat
