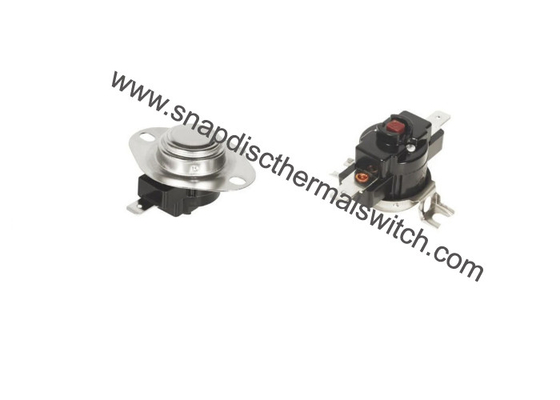

KSD302 Thermostat 25A 30A 40A Temperature Control Switch Bimetal Thermal protector
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Thermostat | Model: | KSD302 |
|---|---|---|---|
| Life Cycle: | 30000 Times | Voltage: | 110-400V |
| Current: | 15-70A | Reset Type: | Auto Reset/Manual Reset |
| Temperature Range: | -20-270℃ | Contact Type: | Normally Closed Or Normally Opened |
| Material Of Shell: | Black Bakelite Or White Ceramic | Customized: | Yes |
| Packaging Details: | Polybag+carton | Supply Ability: | 1000000 Piece/Pieces Per Month |
KSD302 Thermostat 25A 30A 40A Temperature Control Switch Bimetal Thermal protector
Product Discription:
Product Feature:
Snap-Action Temperature Control
The KSD302 series of 3/4’’ Bimetal temperature controls base on proven reliability in a compact,versatile,cost-effective design.The snap action of the bimetal disc provides high-speed contact separations resulting in excellent life cycle characteristics at electrical loads up to AC110V-400V/15A-70A.
Switch Actions
The KSD302 disc thermostat is available in single throw(SPST) switch actions:
Automatic Reset-Can be built to either open or close its contacts on temperature rise.

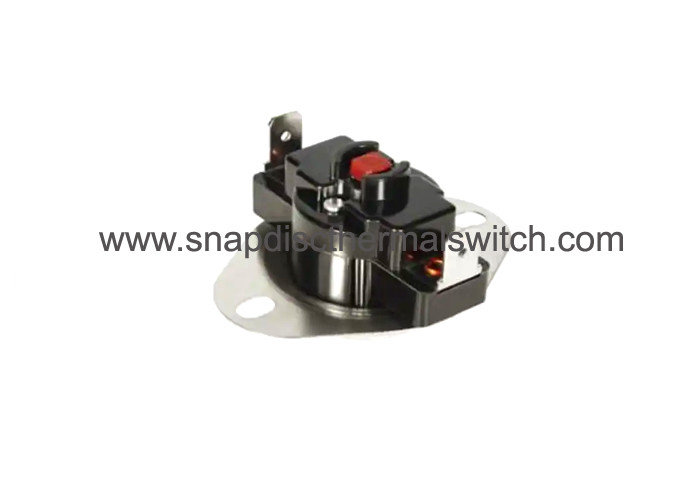

Manual Reset-Available with contacts that open on temperature rise.the contacts can be reset by depressing the button after the control has cooled down.
Action Temperature Range
Bakelite Body:-20℃---150℃
Ceramic Body:150℃-270℃

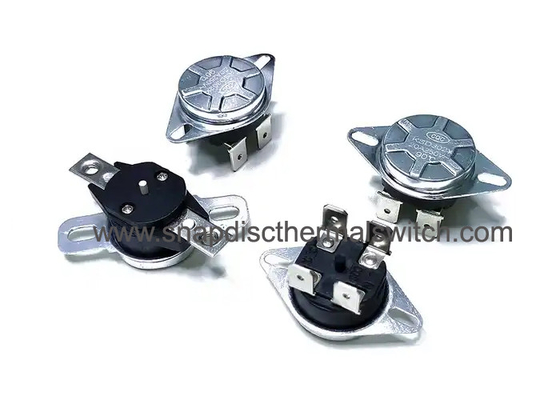

A variety of terminal and mounting configurations are available for maximum design flexibility.
The quality,reliability,affordability,versatility and word-wide agency approvals of the KSD30 series make it the best of choice for a wide variety to temperature control applications.
Dimension
The dimensions for vertical angle conventional type
The dimensions for flat angle conventional type with ear
The dimensions for vertical angle manual type
The KSD302 is applied to a wide variety of application as either a regulating control or a safety limit,
examples of applications include:electric equipment,Water heaters,electric welding machine,electric vehicle battery,Dishwashers,Boilers,washing machine,Electric heaters,Office equipment,Refrigerators,Automotive
seat heaters,Microwave ovens,etc..
Application Range:
The thermostat KSD301 Series products are mainly used for electric motor ,heating water dispensers, kettles,
disinfection cabinets, coffee machines, electric irons, dryers, water heaters,rice cookers,heaters, disinfection cabinets
and motor cleaners,etc..
