100K Ohms 3950 Temperature Transducer Stainless Steel Housing High Stability
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | 6.8*23 | Resistance: | R25＝10K±1%,B25/50＝3950±1% |
|---|---|---|---|
| Temperature Range: | -30 To +125℃ | Lead Wire: | UL1332 26AWG2C TS Black |
| Wire Length: | L=300±10MM | Terminal: | SM-2Y(Black Color) |
| Theory: | Resistance Sensor | Output: | Analog Sensor |
| Material: | Manganese Steel, Plastics, Manganese Steel Nickel Plating | Color: | Black And Silver |
| High Light: | resistance temperature detector,thermistor temperature sensor |
||

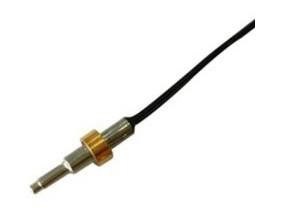

100K Ohms 3950 Stainless Steel Housing NTC Temperature Sensor for Coffee Maker
Quick Details:
| Product Name | NTC Temperature Sensor | Model/Type | 6.8*23 |
| Resistance |
R25＝100KΩ±1% B25/50＝3950±1% |
Lead Wire |
UL1332 26AWG2C TS Black |
| Temperature Range | -30 to +125℃ | Wire Length | L=300±10MM |
| Terminal | SM-2Y(Black Color) | Usage | Water Heater,Coffee maker |
| Theory | Resistance Sensor | Output | Analog Sensor |
| Material | Stainless Steel,Brass | Color | Black and silver |
Description:
NTC Temperature Sensor is a detection element that feeds back the results to the system.
It is also called thermistor or probe. Its principle is the resistance decreases rapidly when the temperature rises. NTC(Negative Temperature CoeffiCient)refers to thermistor phenomenon and material with negative temperature coefficient, and the resistance decreases exponentially when the temperature rises. NTC Temperature sensors are widely used in household, automotive, industrial, medical and other industries.Generally speaking, temperature sensors are used in most electrical and electronic products that require temperature feedback.
Specifications:
1. Overall Dimensions(mm)
2. BOM
| No. | Material | Specifications | Texture of material |
| 1 | Sensing element |
R25=100KΩ±1% B25/50=3950K±1% |
|
| 2 | Housing |
3 step bullet housing with brass ring ∮6.8*3.4+∮4.0*23 |
SUS |
| 3 | Epoxy resin | NZ-4 high temp glue black | |
| 4 | Heat shrinkable tube | ∮1.0*10MM+2 | |
| 5 | Lead Wire | UL1332 26AWG2C TS Black | PVC |
| 6 | Lead Wire cover | TPE | Cu |
| 7 | Connector | 2P White | PVC |
3. Electrical Specification:
| No. | Item | Sign | Test Condition | Min. | Normal value | Max. | Unit |
| 3-1. | Resistance at 25℃ | R25 |
Ta=0±0.05℃ PT≦0.1mw |
99 | 100 | 101 | KΩ |
| 3-2. | B Value | B25/50 | |
3910.5 | 3950 | 3989.5 | K |
| 3-3. | Dissipation factor(in air) | σ | T1=85±0.2℃,Ta=25±1℃ | / | 3.0 | / | mW/℃ |
| 3-4. | Time constant(in water) | τ |
Ta=25±0.5℃ 25℃-50℃/63.2% |
/ | 2 | / | Sec |
| 3-5. | Insulation resistance | / | 300VDC 1Sec | 100 | / | / | MΩ |
| 3-6. | dielectric strength test | / | AC1050V 3mA 2Sec | / | / | 5 | Sec |
| 3-7. | Operating temperature range | / | / | -30 | / | +180 | ℃ |
| TEMPERATURE VS RESISTANCE TABLE | |||||||||||
| Resistance 10K Ohms at 25deg. C | |||||||||||
| Resistance Tolerance + / -1% | |||||||||||
| B Value 3950K at 25/50 deg. C | |||||||||||
| B Value Tolerance + / - 1% | |||||||||||
| Temp. | Rmax | Rnor | Rmin | Temp. | Rmax | Rnor | Rmin | Temp. | Rmax | Rnor | Rmin |
| (deg. C) | (K Ohms) | (K Ohms) | (K Ohms) | (deg. C) | (K Ohms) | (K Ohms) | (K Ohms) | (deg. C) | (K Ohms) | (K Ohms) | (KN.,…. Ohms) |
| -30 | 186.361 | 179.267 | 172.425 | 20 | 12.6537 | 12.501 | 12.3479 | 70 | 1.7864 | 1.738 | 1.6908 |
| -29 | 174.961 | 168.405 | 162.079 | 21 | 12.0895 | 11.949 | 11.808 | 71 | 1.7267 | 1.6794 | 1.6332 |
| -28 | 164.332 | 158.273 | 152.422 | 22 | 11.5535 | 11.424 | 11.2946 | 72 | 1.6694 | 1.6231 | 1.5779 |
| -27 | 154.417 | 148.815 | 143.402 | 23 | 11.0442 | 10.925 | 10.8064 | 73 | 1.6142 | 1.5689 | 1.5247 |
| -26 | 145.164 | 139.984 | 134.975 | 24 | 10.5602 | 10.451 | 10.3419 | 74 | 1.5612 | 1.5168 | 1.4736 |
| -25 | 136.525 | 131.733 | 127.096 | 25 | 10.1 | 10 | 9.9 | 75 | 1.5101 | 1.4667 | 1.4245 |
| -24 | 128.456 | 124.022 | 119.729 | 26 | 9.6709 | 9.5709 | 9.471 | 76 | 1.461 | 1.4185 | 1.3772 |
| -23 | 120.915 | 116.811 | 112.835 | 27 | 9.2623 | 9.1626 | 9.063 | 77 | 1.4137 | 1.3722 | 1.3317 |
| -22 | 113.864 | 110.065 | 106.382 | 28 | 8.8732 | 8.7738 | 8.6747 | 78 | 1.3681 | 1.3275 | 1.288 |
| -21 | 107.269 | 103.751 | 100.339 | 29 | 8.5025 | 8.4037 | 8.3052 | 79 | 1.3243 | 1.2845 | 1.2458 |
| -20 | 101.098 | 97.8396 | 94.6771 | 30 | 8.1494 | 8.0512 | 7.9534 | 80 | 1.282 | 1.2431 | 1.2053 |
| -19 | 95.3201 | 92.302 | 89.3705 | 31 | 7.8128 | 7.7154 | 7.6184 | 81 | 1.2413 | 1.2033 | 1.1663 |
| -18 | 89.9088 | 87.1124 | 84.3946 | 32 | 7.4919 | 7.3953 | 7.2993 | 82 | 1.2021 | 1.1649 | 1.1287 |
| -17 | 84.8385 | 82.2471 | 79.7268 | 33 | 7.1859 | 7.0903 | 6.9953 | 83 | 1.1644 | 1.1279 | 1.0926 |
| -16 | 80.0856 | 77.6837 | 75.3463 | 34 | 6.894 | 6.7995 | 6.7056 | 84 | 1.1279 | 1.0923 | 1.0577 |
| -15 | 75.6284 | 73.4018 | 71.2336 | 35 | 6.6156 | 6.5221 | 6.4294 | 85 | 1.0928 | 1.058 | 1.0241 |
| -14 | 71.4468 | 69.3823 | 67.3708 | 36 | 6.3498 | 6.2576 | 6.166 | 86 | 1.059 | 1.0249 | 0.9918 |
| -13 | 67.522 | 65.6077 | 63.7412 | 37 | 6.0962 | 6.0051 | 5.9148 | 87 | 1.0264 | 0.993 | 0.9606 |
| -12 | 63.837 | 62.0616 | 60.3295 | 38 | 5.854 | 5.7642 | 5.6752 | 88 | 0.9949 | 0.9623 | 0.9306 |
| -11 | 60.3755 | 58.7288 | 57.1212 | 39 | 5.6227 | 5.5342 | 5.4465 | 89 | 0.9646 | 0.9326 | 0.9016 |
| -10 | 57.1228 | 55.5953 | 54.1032 | 40 | 5.4018 | 5.3146 | 5.2283 | 90 | 0.9353 | 0.904 | 0.8737 |
| -9 | 54.0651 | 52.648 | 51.2629 | 41 | 5.1907 | 5.1049 | 5.0199 | 91 | 0.907 | 0.8764 | 0.8468 |
| -8 | 51.1895 | 49.8747 | 48.5889 | 42 | 4.989 | 4.9045 | 4.821 | 92 | 0.8797 | 0.8498 | 0.8208 |
| -7 | 48.4842 | 47.2643 | 46.0705 | 43 | 4.7961 | 4.713 | 4.6309 | 93 | 0.8534 | 0.8241 | 0.7958 |
| -6 | 45.9381 | 44.8062 | 43.6978 | 44 | 4.6117 | 4.53 | 4.4494 | 94 | 0.828 | 0.7994 | 0.7716 |
| -5 | 43.5409 | 42.4906 | 41.4615 | 45 | 4.4354 | 4.3551 | 4.2759 | 95 | 0.8035 | 0.7754 | 0.7483 |
| -4 | 41.2831 | 40.3086 | 39.3531 | 46 | 4.2667 | 4.1878 | 4.11 | 96 | 0.7798 | 0.7523 | 0.7258 |
| -3 | 39.1559 | 38.2516 | 37.3644 | 47 | 4.1053 | 4.0278 | 3.9515 | 97 | 0.7569 | 0.73 | 0.7041 |
| -2 | 37.1508 | 36.3117 | 35.488 | 48 | 3.9508 | 3.8748 | 3.7999 | 98 | 0.7348 | 0.7085 | 0.6831 |
| -1 | 35.2603 | 34.4817 | 33.7169 | 49 | 3.803 | 3.7283 | 3.6548 | 99 | 0.7134 | 0.6877 | 0.6628 |
| 0 | 33.4771 | 32.7547 | 32.0447 | 50 | 3.6614 | 3.5882 | 3.5161 | 100 | 0.6928 | 0.6676 | 0.6433 |
| 1 | 31.7945 | 31.1243 | 30.4652 | 51 | 3.5258 | 3.454 | 3.3833 | 101 | 0.6728 | 0.6482 | 0.6244 |
| 2 | 30.2064 | 29.5847 | 28.9728 | 52 | 3.396 | 3.3255 | 3.2562 | 102 | 0.6536 | 0.6295 | 0.6062 |
| 3 | 28.7068 | 28.1301 | 27.5623 | 53 | 3.2715 | 3.2025 | 3.1346 | 103 | 0.6349 | 0.6113 | 0.5885 |
| 4 | 27.2904 | 26.7556 | 26.2286 | 54 | 3.1523 | 3.0846 | 3.0181 | 104 | 0.6169 | 0.5938 | 0.5715 |
| 5 | 25.9521 | 25.4562 | 24.9672 | 55 | 3.038 | 2.9717 | 2.9065 | 105 | 0.5995 | 0.5769 | 0.555 |
| 6 | 24.6872 | 24.2274 | 23.7738 | 56 | 2.9285 | 2.8635 | 2.7996 | 106 | 0.5826 | 0.5605 | 0.5391 |
| 7 | 23.4912 | 23.065 | 22.6443 | 57 | 2.8234 | 2.7597 | 2.6972 | 107 | 0.5663 | 0.5447 | 0.5237 |
| 8 | 22.3599 | 21.965 | 21.575 | 58 | 2.7227 | 2.6603 | 2.599 | 108 | 0.5506 | 0.5293 | 0.5089 |
| 9 | 21.2897 | 20.9239 | 20.5622 | 59 | 2.626 | 2.5649 | 2.5049 | 109 | 0.5353 | 0.5145 | 0.4945 |
| 10 | 20.2768 | 19.938 | 19.6028 | 60 | 2.5333 | 2.4734 | 2.4147 | 110 | 0.5206 | 0.5002 | 0.4806 |
| 11 | 19.3178 | 19.0041 | 18.6937 | 61 | 2.4443 | 2.3856 | 2.3282 | 111 | 0.5063 | 0.4863 | 0.4671 |
| 12 | 18.4096 | 18.1193 | 17.8318 | 62 | 2.3589 | 2.3014 | 2.2452 | 112 | 0.4924 | 0.4729 | 0.4541 |
| 13 | 17.5493 | 17.2807 | 17.0146 | 63 | 2.2768 | 2.2206 | 2.1656 | 113 | 0.4791 | 0.4599 | 0.4415 |
| 14 | 16.734 | 16.4857 | 16.2394 | 64 | 2.1981 | 2.1431 | 2.0892 | 114 | 0.4661 | 0.4474 | 0.4293 |
| 15 | 15.9612 | 15.7317 | 15.504 | 65 | 2.1224 | 2.0686 | 2.0159 | 115 | 0.4535 | 0.4352 | 0.4175 |
| 16 | 15.2284 | 15.0164 | 14.8059 | 66 | 2.0498 | 1.997 | 1.9455 | 116 | 0.4414 | 0.4234 | 0.4061 |
| 17 | 14.5333 | 14.3376 | 14.1432 | 67 | 1.98 | 1.9283 | 1.8779 | 117 | 0.4296 | 0.412 | 0.3951 |
| 18 | 13.8738 | 13.6933 | 13.5139 | 68 | 1.9129 | 1.8623 | 1.813 | 118 | 0.4182 | 0.4009 | 0.3844 |
| 19 | 13.2479 | 13.0816 | 12.916 | 69 | 1.8484 | 1.7989 | 1.7507 | 119 | 0.4071 | 0.3902 | 0.374 |
| 120 | 0.3964 | 0.3799 | 0.364 | ||||||||
How to select the right thermistor / temperature sensor ?
1. Resistance Value
2. Resistance Temperature Characteristics
3. Resistance Tolerance and Temperature Tolerance
4. Operating Temperature
5. Mounting and Assembly
6. Configuration
7. Cost
8. Special Requirement
Application:
● Household: Health Pot, Water Heater, Wall-hung Boiler, Rice Cooker, Blender, Air Conditioner, etc.
● Automotive: Cooling System, Air Conditioning System, etc.
● Industrial: Oven, Heating System, Cooling System, etc.
● Medical: Temperature monitoring and other temperature monitoring equipment.
Advantages:
● High Stability
● High accuracy and precision
● Sensitve reaction, durable
● Easy to install
Tag:
Thermistor, Resistance Sensor, Temperature Transducer, Temperature Prob
