Insulation Effect Slow Acting Fuse Low Breaking Capacity ROHS Complaint

Insulation Effect Slow Acting Fuse Low Breaking Capacity ROHS Complaint

Insulation Effect Slow Acting Fuse Low Breaking Capacity ROHS Complaint
Insulation Effect Slow Acting Fuse Low Breaking Capacity ROHS Complaint Insulation Effect Slow Acting Fuse Low Breaking Capacity ROHS Complaint Insulation Effect Slow Acting Fuse Low Breaking Capacity ROHS Complaint Insulation Effect Slow Acting Fuse Low Breaking Capacity ROHS Complaint

Large Image :  Insulation Effect Slow Acting Fuse Low Breaking Capacity ROHS Complaint Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: Yusheng
Certification: VDE,UL,CCC,KC
Model Number: 8TE
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: Array in a strip,1000pcs per box
Delivery Time: 5-7 work days
Payment Terms: T/T, D/P, Western Union
Supply Ability: 500,000,000pcs per month
Detailed Product Description
Operating Temeprature: -40℃~+125℃ Rated Voltage: 250V
Rated Current: 250mA~6.3A BreakingCapacity(VDE): 100amperes At 250V/300V AC(250mA~6.3A)
Fuse Element: Alloy
High Light:

square cylinder micro fuse

,

slow acting fuse

250V 1.5A 8TE Series Square Type Slow Blow Micro Fuse for Power Supply with ROHS


Quick Detail:

Product Name Slow Blow Micro Fuse 8TE Size 8*4*8mm
Speed Time Delay Current & Voltage 3.15A 250V
Color Black or Brown Pitch 5.08mm
Blow Slow Blow Breaking Capacity Low


Description:


8TE Slow Blow Micro Fuse is used to control the current to protect the circuit.Once the current in the circuit is higher than the rated current of the appliance, the fuse will automatically cut off the current to protect the safety of the appliance. 5TR Micro Fuse protect the circuit by fusing themselves by the joule heat of the current flowing through the fusible metal. Most electrical appliances have fuses.8TE Slow Blow Micro Fuse has the characteristics of small size, high sensitivity and quick protection.Often used for switch power supply, charger, small appliance control board, and etc.

Specifications:
1. Marking, Size and Structure

Insulation Effect Slow Acting Fuse Low Breaking Capacity ROHS Complaint 0

Insulation Effect Slow Acting Fuse Low Breaking Capacity ROHS Complaint 1



Insulation Effect Slow Acting Fuse Low Breaking Capacity ROHS Complaint 2



2.

No. Part Name Material Remarks
Base Plastic
Housing Plastic
Lead Wire Tinned Cooper Wire
Fuse Element Alloy
Soldering Tin Solder wire(Sn99.3%,Cu0.7%) ROHS


2.Time-current Characteristics

Insulation Effect Slow Acting Fuse Low Breaking Capacity ROHS Complaint 3



Rated Current Rated Voltage Norminal Melting I2T(A2Sec) Approvals
VDE CCC UL KC
250mA 250V 0.28
315mA 250V 0.45
400mA 250V 0.80
500mA 250V 1.2
630mA 250V 1.8
800mA 250V 3.0
1A 250V 4.2
1.25A 250V 5.0
1.6A 250V 8.2
2A 250V 9.8
2.5A 250V 16.0
3.15A 250V 22.5
4A 250V 30.0
5A 250V 64.0
6.3A 250V 72.0
7A 250V 125
8A 250V 164
10A 250V 256


3. 8TE Time-Current Curves
Insulation Effect Slow Acting Fuse Low Breaking Capacity ROHS Complaint 4
4. 8TE Wave Soldering Parameters

Insulation Effect Slow Acting Fuse Low Breaking Capacity ROHS Complaint 5

5. 8TE Temperature-current Curve

Insulation Effect Slow Acting Fuse Low Breaking Capacity ROHS Complaint 6

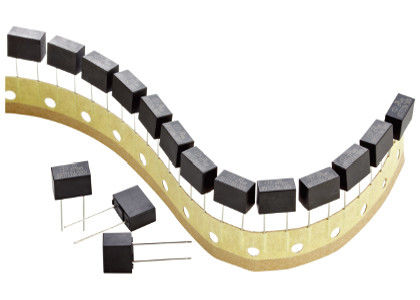

3. 8TE Packaging

Insulation Effect Slow Acting Fuse Low Breaking Capacity ROHS Complaint 7

Application:
● Computer peripheral products
● Digital cameras
● Monitors
● Batteries

● Load management equipment
● Automotive load dump devices
● Electronic/AC power meter
● Valves used in automatic car wash systems
● Plug-in cards
● Remote controls
● GFCIs (ground fault circuit interrupters)
● Motor compressors
● Drive and control electronics
● Switch mode power supplies and UPS


Competive Advantages:
● Easy to install
● Fire resistance

● High Sentivity
● Insulation effect

● Quick protection
● Wide application

● Low leakage current
● Completed certificates such as UL,VDE,SGS,etc and high quality available
