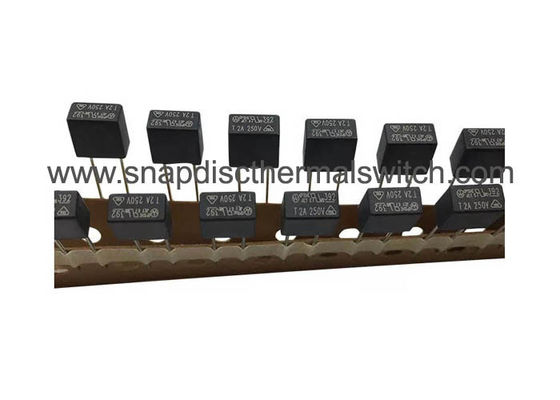

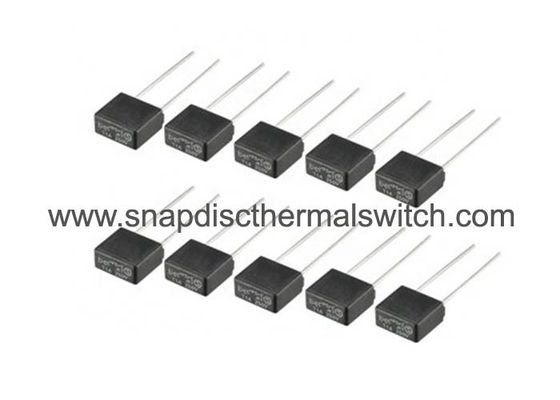

8*4*8 MM Square Box Slow Blow Micro Fuse PSE CCC

8*4*8 MM Square Box Slow Blow Micro Fuse PSE CCC

8*4*8 MM Square Box Slow Blow Micro Fuse PSE CCC
8*4*8 MM Square Box Slow Blow Micro Fuse PSE CCC 8*4*8 MM Square Box Slow Blow Micro Fuse PSE CCC 8*4*8 MM Square Box Slow Blow Micro Fuse PSE CCC 8*4*8 MM Square Box Slow Blow Micro Fuse PSE CCC

Large Image :  8*4*8 MM Square Box Slow Blow Micro Fuse PSE CCC Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: Yusheng
Certification: VDE, UL, CQC, PSE, KC
Model Number: 5TE
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: Array in a strip,1000pcs per box
Delivery Time: 5-7 work days
Payment Terms: T/T, D/P, Western Union
Supply Ability: 500,000,000pcs per month
Detailed Product Description
Name: Slow Blow Micro Fuse Model: 5TE
Operating Temperature: -40℃~+125℃ Rated Voltage: 250V
Rated Current: 250mA~15A Breaking Capacity: 100amperes At 250V/300V AC(250mA~6.3A)
Color: Black And Red Mounting: Radial Lead
Shape: Square Fuse Element: Alloy
Fuse Body: Plastic Lead Wire: Tin Plated Copper
High Light:

250V Slow Blow Micro Fuse

,

250mA Slow Blow Micro Fuse

8*4*8 MM Square Box Type Radial Leaded Time Lag Slow Blow Micro Fuse PSE CCC




Quick Detail:

Product Name Slow Blow Micro Fuse 5TE Size 8*4*8mm
Speed Time Delay Current & Voltage 2A 250V
Color Black or Red Pitch 5.08mm
Blow Slow Blow Breaking Capacity Low


Description:


5TE Slow Blow Micro Fuse is used to control the current to protect the circuit.Once the current in the circuit is higher than the rated current of the appliance, the fuse will automatically cut off the current to protect the safety of the appliance. 5TR Micro Fuse protect the circuit by fusing themselves by the joule heat of the current flowing through the fusible metal. Most electrical appliances have fuses.8TE Slow Blow Micro Fuse has the characteristics of small size, high sensitivity and quick protection.Often used for switch power supply, charger, small appliance control board, and etc.

Specifications:
1. Dimension and Structure

8*4*8 MM Square Box Slow Blow Micro Fuse PSE CCC 0
8*4*8 MM Square Box Slow Blow Micro Fuse PSE CCC 1
8*4*8 MM Square Box Slow Blow Micro Fuse PSE CCC 2

8*4*8 MM Square Box Slow Blow Micro Fuse PSE CCC 3





2. BOM

No. Part Name Material Remarks
Cap Black or Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0
Base Black or Brown Thermoplastic Polyamide PA 6.6, UL 94 V-0
Fuse Element Alloy
Lead Wire Copper, Tin-plated


3. Time-current Characteristics



Rated Current Rated Voltage Norminal Melting I2T(A2Sec) Approvals
VDE CCC UL KC
250mA 250V 0.28
315mA 250V 0.45
400mA 250V 0.80
500mA 250V 1.2
630mA 250V 1.8
800mA 250V 3.0
1A 250V 4.2
1.25A 250V 5.0
1.6A 250V 8.2
2A 250V 9.8
2.5A 250V 16.0
3.15A 250V 22.5
4A 250V 30.0
5A 250V 64.0
6.3A 250V 72.0
7A 250V 125
8A 250V 164
10A 250V 256


4. Time-Current Curves
8*4*8 MM Square Box Slow Blow Micro Fuse PSE CCC 4

5. Temperature-current Curve

8*4*8 MM Square Box Slow Blow Micro Fuse PSE CCC 5

6. Installation

8*4*8 MM Square Box Slow Blow Micro Fuse PSE CCC 6



7. Packaging

8*4*8 MM Square Box Slow Blow Micro Fuse PSE CCC 7

8. Production Machines

8*4*8 MM Square Box Slow Blow Micro Fuse PSE CCC 8

8*4*8 MM Square Box Slow Blow Micro Fuse PSE CCC 9



Application:
● Computer peripheral products
● Digital cameras
● Monitors
● Batteries

● Load management equipment
● Automotive load dump devices
● Electronic/AC power meter
● Valves used in automatic car wash systems
● Plug-in cards
● Remote controls
● GFCIs (ground fault circuit interrupters)
● Motor compressors
● Drive and control electronics
● Switch mode power supplies and UPS


Competive Advantages:
● Easy to install
● Fire resistance

● High Sentivity
● Insulation effect

● Quick protection
● Wide application

● Low leakage current
● Completed certificates such as UL,VDE,SGS,etc and high quality available
