Waterproof Snap Disc Thermal Switch High Accuracy For Soy Bean Milk Maker
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Model: | KSD301 | Reset Type: | Auto Reset |
|---|---|---|---|
| Rated Volts & Amps: | 250V AC 10A/16A | Contact Type: | Normally Closed Or Normally Open |
| Temperature Range: | 0～150℃ | Life Cycle: | 100,000 Cycles |
| High Light: | snap action disc thermostats,bimetal snap disc thermostat |
||

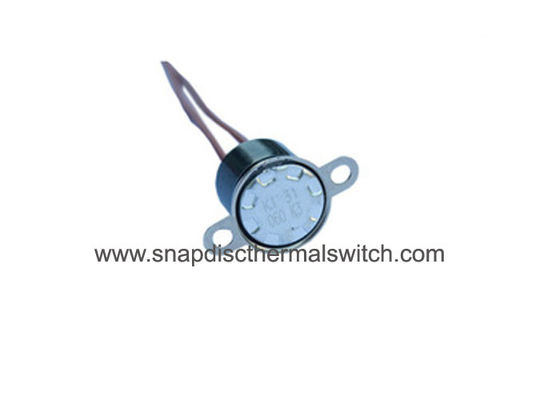

KSD301 Waterproof ROHS compliant Snap Disc Thermal Switch for Soy Bean Milk Maker
Quick Detail:
| Model | KSD301 |
| Reset Type | Auto Reset |
| Single Pole,Single Throw(SPST) | |
| Body Material: | Bakelite or Ceramic |
| Rated Voltage & Current | 250V AC 10A/16A |
| Contact Type | Normally Closed(Open on Rise) or Normally Open(Close on Rise) |
| Operating Temperature Range | 0～150℃ (Bakelite Body) |
| Temperature differentials | 8.5～55℃ (difference between off and on temperatures) |
| Temperature tolerance | ±3.0℃, ±5.0℃, ±8.0℃, ±10.0℃ |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | ≥1500V |
| Life Cycle | 100,000 Cycles |
| Certificate | CQC,TUV,UL,VDE,ROHS,REACH |
Description:
KSD301 series Snap Disc Thermal Switch is a snap-action thermostat with a bi-metal disc as the temeprature sensing element. KSD301 auto reset type can be reseted automatically. Its main working principle is to control the temperature by opening or closing the bi-metal strip. It stays at normally closed/normally open status, it opens/closes when temeprature rising and closes/opens when temperature decreasing. It has the characteristics of snap action,high accuracy, long life cycle.It is widely used in rice cooker, microwave oven, electric water boiler,room heater, egg boiler and electric steamer,etc.
Applications:
● Kitchen Appliances: Rice Cooker, Microwave Oven, Oven, Fryer, Egg Boiler, Electric Steamer etc.
● Household Appliances: Electric Water Boiler, Room Heater,Waffle Baker etc.
Specifications:
1. Dimensional Outline
|
|
2. BOM
| No. | Parts Name | Qty. | Material | Remark |
| 01 | Cap | 1 | Aluminium | |
| 02 | Actuator Pin | 1 | Ceramic | |
| 03 | Movable Contact | 1 | AgNi/Cu(T2) | |
| 04 | Stationary Arm | 1 | Brass | |
| 05 | Stationary Contact | 1 | AgNi/Cu(T2) | |
| 06 | Case | 1 | PF | |
| 07 | Bond | 1 | Epoxy | |
| 08 | Wire | 1 | 16AWG Red | |
| 09 | Case | 1 | PF | |
| 10 | Short Rivet | 1 | Steel | Tin Plated |
| 11 | Long Rivet | 1 | Steel | Tin Plated |
| 12 | Terminal | 2 | Brass | |
| 13 | Movable Arm | 1 | Alloy copper | |
| 14 | Bond | 1 | Silica gel | |
| 15 | Top Cover | 1 | PF | |
| 16 | Bimetal Disc | 1 | Bimetal |
3. Action Temperature Table
| Standard Temperature Sheet | |||
| KSD301 | |||
| Action Temperature | Reset Temperature | Action Temperature | Reset Temperature |
| 45±3℃ | 35±5℃ | 145±5℃ | 125±7℃ |
| 50±3℃ | 40±5℃ | 150±5℃ | 130±7℃ |
| 55±3℃ | 45±5℃ | 155±5℃ | 135±7℃ |
| 60±3℃ | 50±5℃ | 160±5℃ | 140±8℃ |
| 65±3℃ | 50±5℃ | 165±6℃ | 145±8℃ |
| 70±3℃ | 55±5℃ | 170±6℃ | 150±8℃ |
| 75±3℃ | 60±5℃ | 175±6℃ | 155±8℃ |
| 80±3℃ | 65±5℃ | 180±7℃ | 160±10℃ |
| 85±3℃ | 70±5℃ | 185±7℃ | 155±10℃ |
| 90±3℃ | 75±5℃ | 190±7℃ | 160±10℃ |
| 95±3℃ | 80±5℃ | 195±7℃ | 165±10℃ |
| 100±4℃ | 85±6℃ | 200±8℃ | 170±10℃ |
| 105±4℃ | 85±6℃ | 205±8℃ | 175±10℃ |
| 110±4℃ | 90±6℃ | 210±8℃ | 180±10℃ |
| 115±5℃ | 95±6℃ | 215±10℃ | 185±10℃ |
| 120±5℃ | 100±6℃ | 220±10℃ | 190±10℃ |
| 125±5℃ | 105±6℃ | 230±10℃ | 200±10℃ |
| 130±5℃ | 110±6℃ | 240±10℃ | 205±12℃ |
| 135±5℃ | 115±6℃ | 250±10℃ | 210±15℃ |
| 140±5℃ | 120±7℃ | ||
| Remark : | |||
| 0-60℃±5℃: Reset Temperature=Action Temperature-10℃ | |||
| 60-120℃±5℃: Reset Temperature=Action Temperature-15℃ | |||
| 120-160℃±5℃: Reset Temperature=Action Temperature-20℃ | |||
| 160-200℃±7℃: Reset Temperature=Action Temperature-25℃ | |||
| 200-250℃(±8℃-10℃): Reset Temperature=Action Temperature-30℃/40℃ | |||
Competitive Advantages:
1. Waterproof Construction
2. High temeprature resistance
3. High reliability
4. ong life cycles
5. ROHS compliant
6. Wide application
