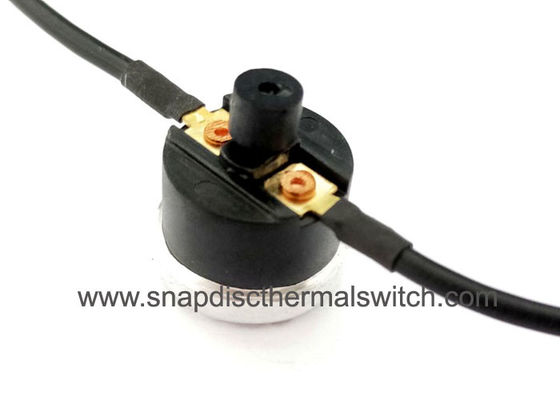

Bakelite Snap Action Temperature Switch Long Life Cycle High Reliability

Bakelite Snap Action Temperature Switch Long Life Cycle High Reliability

Bakelite Snap Action Temperature Switch Long Life Cycle High Reliability
Bakelite Snap Action Temperature Switch Long Life Cycle High Reliability Bakelite Snap Action Temperature Switch Long Life Cycle High Reliability Bakelite Snap Action Temperature Switch Long Life Cycle High Reliability Bakelite Snap Action Temperature Switch Long Life Cycle High Reliability

Large Image :  Bakelite Snap Action Temperature Switch Long Life Cycle High Reliability Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: Yusheng
Certification: CQC. TUV, VDE, UL, CB, ROHS, REACH
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: 1000PCS or 2000PCS Per Carton, Carton Size: 280*270*320mm
Delivery Time: 7-10 work days
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000 Pcs Per Month
Detailed Product Description
Model: KSD301 Reset Type: Auto Reset, Manual Reset
Rated Volts & Amps: 250V AC 10A/16A Contact Type: Normally Closed Or Normally Open
Temperature Range: 0~250℃ Cover: Fixed / Movable / Screw
Tolerance: +/-5 C For Open Action(Optional +/-3 C Or Less), +/-5C Diameter Of Bimetal Disc: 12.8 Mm (1/2)
Life Cycle: 100,000 Cycles
High Light:

snap disc thermostat switch

,

bimetal snap disc thermostat

250V AC 10A 100 Deg C KSD301 Manual Reset Snap Disc Thermal Switch with UL, TUV



Quick Detail:

Model KSD301
Reset Type Manual Reset
  Single Pole,Single Throw(SPST)
Body Material Bakelite
Rated Voltage & Current 250V AC 10A/16A
Contact Type

Normally Closed(Open on Rise)

Operating Temperature Range

0~150℃ (Bakelite Body),0~250℃ (Ceramic Body)

Temperature differentials 8.5~55℃ (difference between off and on temperatures)
Temperature tolerance ±3.0℃, ±5.0℃, ±8.0℃, ±10.0℃
Contact Resistance ≤50mΩ
Insulation Resistance ≥100MΩ
Dielectric Strength ≥1500V
Life Cycle 100,000 Cycles
Certificate CQC,TUV,UL,VDE,ROHS,REACH



Description:



KSD301 series Snap Disc Thermal Switch is a snap-action thermostat with a bi-metal disc as the temeprature sensing element. It can be reseted automatically. Its main working principle is to control the temperature by opening or closing the bi-metal strip. It stays at normally closed/normally open status, it opens/closes when temeprature rising and closes/opens when temperature decreasing. It has the characteristics of snap action,high accuracy, long life cycle.It is widely used in rice cooker, microwave oven, electric water boiler,room heater, egg boiler and electric steamer,etc.



Specifications:



1. Dimensional Outline

Bakelite Snap Action Temperature Switch Long Life Cycle High Reliability 0



2. Technical Requirements



Model KSD301
Action Temprature 100±5℃
Rated Voltage & Current 250V AC 10A
Reset Type Manual Reset
Contact Type Normally Closed
Body Material Bakelite
Terminal 4.8*0.8mm, Horizontal
Lead Wire UL3135 AWG20, L1=L2=150MM
Test Voltage ≥ 1500V / min (Normality)
Product Executive Standard:

UL873, CSA C22.2 NO 24-93,EN60730-1 2000+AⅡ, EN60730-2-9:2002,

GB14536.1-2008 idt IEC 730-1, GB14536.10-2008 idt IEC 730-2-9-1992,




3. Action Temperature Table

Standard Temperature Sheet
KSD301
Action Temperature Reset Temperature Action Temperature Reset Temperature
45±3℃ 35±5℃ 145±5℃ 125±7℃
50±3℃ 40±5℃ 150±5℃ 130±7℃
55±3℃ 45±5℃ 155±5℃ 135±7℃
60±3℃ 50±5℃ 160±5℃ 140±8℃
65±3℃ 50±5℃ 165±6℃ 145±8℃
70±3℃ 55±5℃ 170±6℃ 150±8℃
75±3℃ 60±5℃ 175±6℃ 155±8℃
80±3℃ 65±5℃ 180±7℃ 160±10℃
85±3℃ 70±5℃ 185±7℃ 155±10℃
90±3℃ 75±5℃ 190±7℃ 160±10℃
95±3℃ 80±5℃ 195±7℃ 165±10℃
100±4℃ 85±6℃ 200±8℃ 170±10℃
105±4℃ 85±6℃ 205±8℃ 175±10℃
110±4℃ 90±6℃ 210±8℃ 180±10℃
115±5℃ 95±6℃ 215±10℃ 185±10℃
120±5℃ 100±6℃ 220±10℃ 190±10℃
125±5℃ 105±6℃ 230±10℃ 200±10℃
130±5℃ 110±6℃ 240±10℃ 205±12℃
135±5℃ 115±6℃ 250±10℃ 210±15℃
140±5℃ 120±7℃
Remark :
0-60℃±5℃: Reset Temperature=Action Temperature-10℃
60-120℃±5℃: Reset Temperature=Action Temperature-15℃
120-160℃±5℃: Reset Temperature=Action Temperature-20℃
160-200℃±7℃: Reset Temperature=Action Temperature-25℃
200-250℃(±8℃-10℃): Reset Temperature=Action Temperature-30℃/40℃



Applications:



Kitchen Appliances: Rice Cooker, Microwave Oven, Oven, Fryer, Egg Boiler, Electric Steamer, Vacuum Cleaner, etc.

Household Appliances: Electric Water Boiler, Room Heater,Waffle Baker, Electric Fan, Panel Heater, High-wall Heat Pump,

                                        Multi - Split Air Conditioning, Ducted Ceiling Air Conditioning, etc.

● Other Industry: Medical Equipement, Air Compressor, Batter Packs, etc.



Competitive Advantages:



1. Small size and expedient installation

2. High temeprature resistance

3. High reliability

4. Long life cycles

5. ROHS compliant

6. Wide application



Tag:



Temperature Switch KSD301, Snap-action Thermostat, Snap Action Temperature Switch, Snap Action Bimetal Disc Thermostat,

Bimetal Disc Thermal Switch, Automatic Thermal Switch, Temperature Controller
