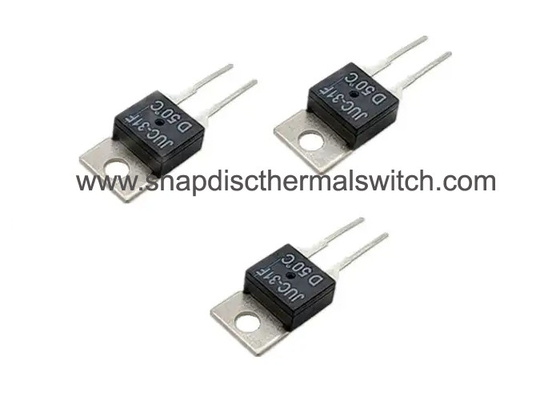

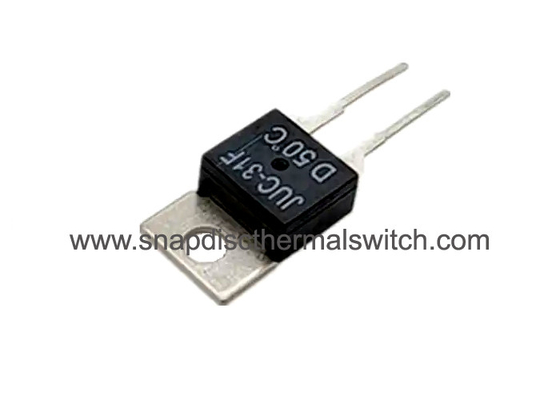

JUC-31F Reliable Thermal Overload Protection For Circuit Boards Temperature Switch 24DC 4A

JUC-31F Reliable Thermal Overload Protection For Circuit Boards Temperature Switch 24DC 4A

Product Description

The JUC-31F series thermal protector adopts bimetallic sheets with a certain geometric shape, without the need for auxiliary mechanisms. It relies solely on the self sensing and current thermal effects of the bimetallic sheets to quickly change the state of the bimetallic components, directly driving the contacts to automatically cut off and connect the circuit, playing a role in overheating and overload protection.

Application:

Note:
1 , using the contact temperature installation should be charged with the metal cover up snapping apparatus mounting surface , to ensure that the temperature effect , should be coated with thermal grease or other similar thermal properties of the medium in the surface temperature .

2 , the installation can not cover up the top collapsed , loose or deformed , so as not to affect performance.

3, can not allow the liquid to penetrate the internal temperature may not make the shell cracks , are not free to change the shape of the external terminals.

4 , the product is not greater than 5A current in the circuit , chose the copper cross-section 0 5-1 mm 2 wire connection ; . No greater than 10A current in the circuit , chose the cross-section of 0.75-1.5 mm 2 copper wire connection.

5, the product should be less than 90% relative humidity , ambient temperature is below 40 °C ventilated, clean, dry , non-corrosive gases stored in the warehouse .

KSD-01F classification , in accordance with the temperature to points, can also be classified according to the material , you can also follow the installation way points.

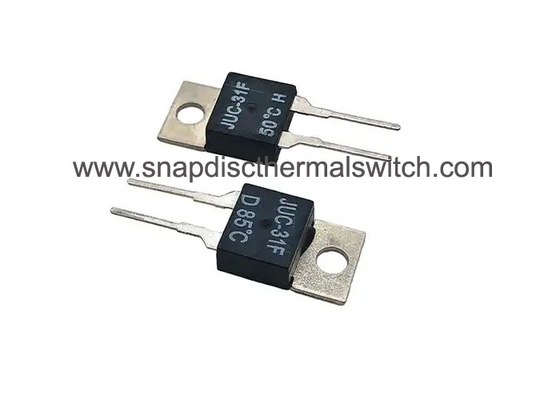

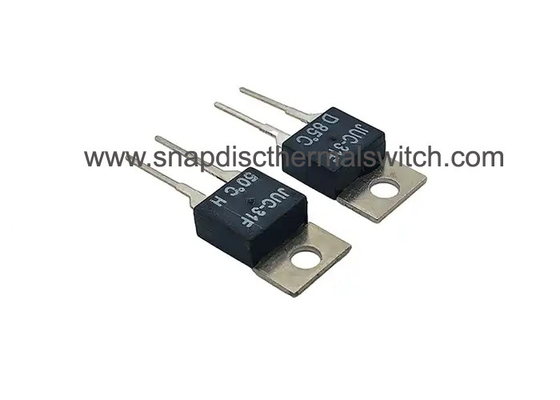

According to the nature of the action : the action can be divided into normally open(H Type) and normally closed(D type).

Tag:

Temperature Switch, Thermal Overload Switch, Thermal Switch
