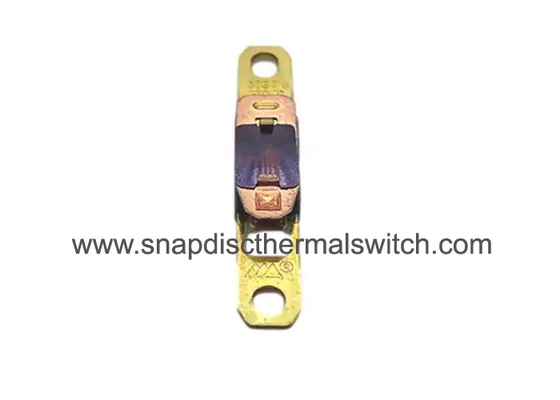

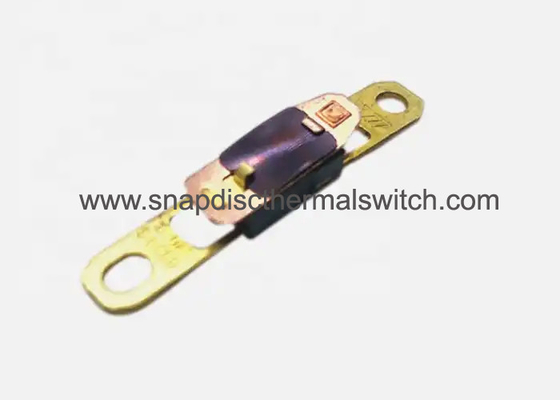

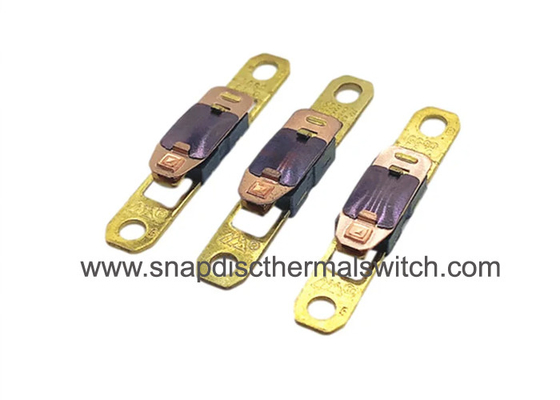

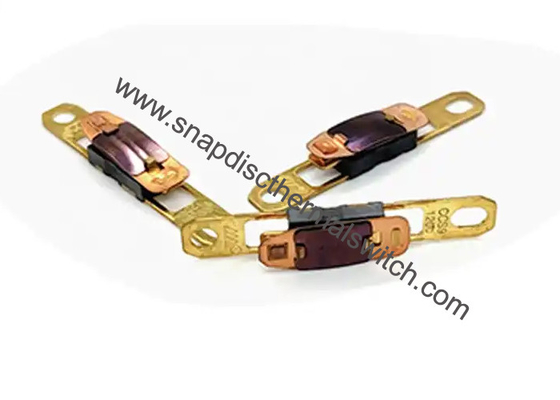

Long Life Open Backpack Type Temperature Limiter Bimetal Thermometer Thermostats For Hair Dryer
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Thermal Protector | Model: | ST-12 |
|---|---|---|---|
| Life Cycle: | 10000 Times | Size: | 31.5*5mm |
| Voltage And Current: | 125-250 V | Current: | 10A / 15A |
| Reset Type: | Auto Reset | Temperature Range: | 50 ℃ ~160 ℃ |
| Contact Type: | Normally Closed | IP Level: | IP11 |
| Customized: | Yes | Supply Ability: | 1000000 Piece/Pieces Per Month |
| Contact Resistance: | ≤50mΩ | Pacakge: | Polybag+carton |
| Color: | White, Brown |
Long Life Open Backpack Type Temperature Limiter Bimetal Thermometer Thermostats For Hair Dryer
Product Discription:
50~160 Degree High Quality open type Bimetal Thermal Protector Cut Off Switch Temperature Switch
The open series temperature controller is a small bimetal sheet temperature controller, which belongs
to the temperature relay device. Using the principle of the disc bimetal plate to produce instant beating
under the action of temperature, the contact can act quickly through the action of the mechanism to
achieve the purpose of disconnecting or connecting the circuit. Its working temperature is fixed, no need
to adjust; Reliable and simple action, small arc; Long service life; Low radio interference.
The main structure is made of one-piece injection molding, making the structure more reasonable and
compact. Square contacts, longer life, larger carrying capacity, external temperature sensor, more direct
and uniform temperature, optional ceramic material, automatic recovery or power-off recovery can be selected.
Contact type: normally closed
Operating range: 50℃-160℃ (5℃ apart for first gear)
Temperature tolerance: ±3℃ ±5℃ ±7℃
Contact resistance: ≤50mΩ
Reset temperature: Decrease the operating temperature by 10 ° C to 45 ° C
Electrical parameter: AC 250V / 10AAC 125V / 15A
