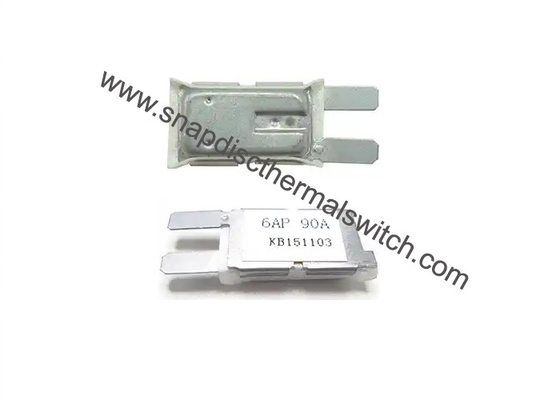

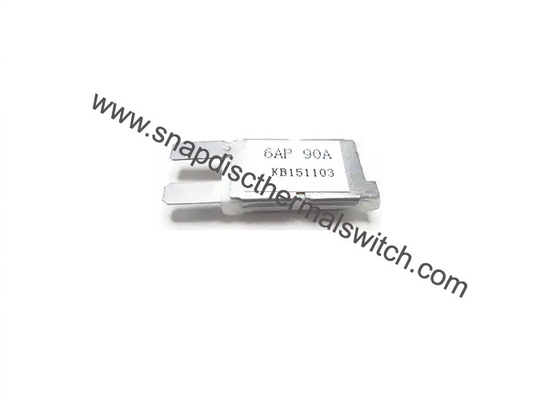

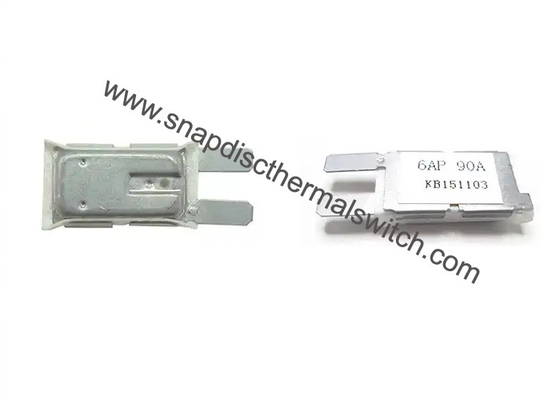

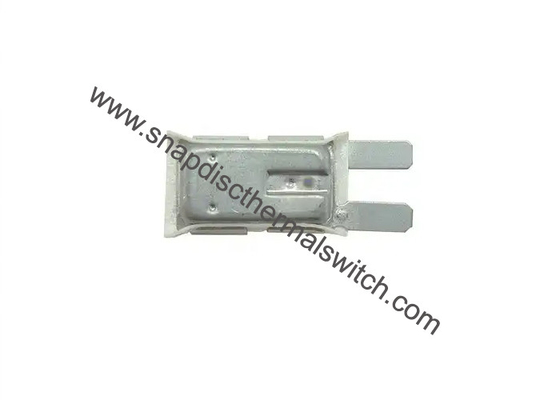

6AP Replace Senstat Current Protection Thermal Cutoff Motor Protector Circuit Breaker For DC Motor
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Thermal Protector | Model: | 6AP |
|---|---|---|---|
| Life Cycle: | 10000 Times | Size: | 23.1*9.3*3.6mm |
| Voltage: | 250V | Reset Type: | Auto Reset |
| Temperature Range: | 60℃~170℃ | Contact Type: | Normally Closed |
| Material Of Shell: | Iron | Customized: | Yes |
| Packaging Details: | Polybag+carton | Supply Ability: | 1000000 Piece/Pieces Per Month |
6AP Replace Senstat Current Protection Thermal Cutoff Motor Protector Circuit Breaker For DC Motor
Product Discription:
1)Small-dimensions,long-life,and high reliability 2)Use bimetallic materials with good conductivity to ensure
they can withstand normal circuit currents.
3)The combination of bimetal sheet and electric heating wire has a quick trip function
4) Very precise tripping time to prevent motor temperature from being too high.
5) With dual protection characteristics of current and temperature.
6)There are many types of terminals for flexible choice
7)Parts strictly adhere to European ROHS environmental standards.
8) Specific specifications or riveting services can be made according to customer requirements
1)Temperature range: 65°C~170°C
2)Temperature tolerance: ± 2 ℃/± 3 ± 5 ℃
3) Trip overload current range: 2 ~ 45A
4) Trip time: 4~10S
It is widely used for dual protection against overheating and overcurrent of washing machine motors,
grinder, mixers, snowplow motors and general electrical equipment.etc..
