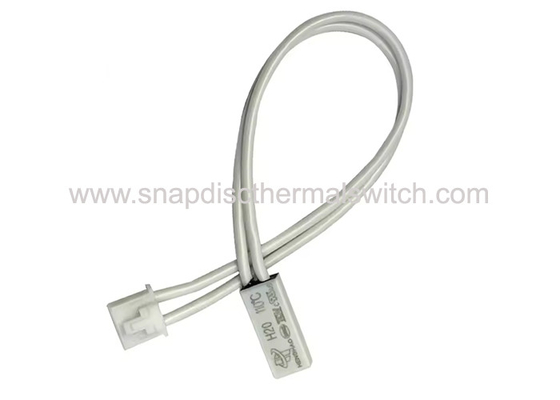

Pump motor H20 Thermal Protector, Power Supply Temperature Controller Switch Fuse 250V 5A 10A 16A

Pump motor H20 Thermal Protector, Power Supply Temperature Controller Switch Fuse 250V 5A 10A 16A
Pump motor H20 Thermal Protector, Power Supply Temperature Controller Switch Fuse 250V 5A 10A 16A Pump motor H20 Thermal Protector, Power Supply Temperature Controller Switch Fuse 250V 5A 10A 16A Pump motor H20 Thermal Protector, Power Supply Temperature Controller Switch Fuse 250V 5A 10A 16A Pump motor H20 Thermal Protector, Power Supply Temperature Controller Switch Fuse 250V 5A 10A 16A

Large Image :  Pump motor H20 Thermal Protector, Power Supply Temperature Controller Switch Fuse 250V 5A 10A 16A Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: Yusheng
Certification: UL, VDE, TUV, CB, CQC
Model Number: H21
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: 4000pcs per Carton, Carton Size:280*260*320mm
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 2,000,000PCS per Month
Contact Now
Detailed Product Description
Name: Thermal Protector Model: H21
Life Cycle: 10000 Times Size: 18.5*7.5*3.8mm
Voltage: 250V Reset Type: Auto Reset
Temperature Range: 40℃~150℃ Contact Type: Normally Closed/Opened
Material Of Shell: Iron Customized: Yes
Packaging Details: Polybag+carton Supply Ability: 1000000 Piece/Pieces Per Month
Featrue: Quick Snap Action Current: 5A / 16A

KSD9700 Temperature Switch For Paper Shredder, KSD9700 Thermal Protector For Electric Fan Heaters


Product Discription:



H20,H21 series universal and enhanced protectors with large metal casing are composed of the thermal conductive metal casing,
bimetallic parts welded with silver alloy contact point, conductive bracket, insulation fixation stand, fixed contact strip and heat
resistance cable. In case of abnormal operation, along with the increase of the environment temperature to the set value, the bimetallic
parts perform quick action, open the contact point, and disconnect the circuit. When the device is cooled to the temperature for safe operation, the contact point will automatically closes and recover normal operation.
Specification
Voltage & Current
AC 125V max 15A; AC250V 5A 10A 15A max 16A
Action Temperature
0~250℃
Recovery and action temperature difference
0 to 25 degrees, or according to client's request.
Temperature deviation:
±3 / ±5 / ±10 degree or according to client's request
Circuit resistance
≤50mΩ (Initial value)
Insulation resistance
AC50Hz 1500V / min, no breakdown blinding (Normal State)
Life cycle
≥100000 times
Contact type
Normally closed or Normally open
Two kinds of mounting bracket
movable or immovable
Terminal type
a. Terminal type: 187series of 4.8*0.5mm and 4.8*0.8mm, 250 series of 6.3*0.8mm
b. Terminal Angle: bending angle: 0~90°C optional
House
plastic or ceramic.
Temperature sensor face
aluminum cap or copper head.




Pump motor H20 Thermal Protector, Power Supply Temperature Controller Switch Fuse 250V 5A 10A 16A 0

Mini size, easy to install
Dual protection for temperature and current
Quick moving bimetallic sheet with fast reaction speed
With a lifespan of over 10000 times
Low internal resistance less than 50mΩ
Sealing and waterproofing process
Leads can be customized according to requirements



Pump motor H20 Thermal Protector, Power Supply Temperature Controller Switch Fuse 250V 5A 10A 16A 1

Rated electrical performance: AC250V / 5A; AC125V / 8A
Contact resistance: <50mΩ
Contact Type: Normally closed
Opening temperature: 40-150℃
Temperature tolerance: ±5℃ ±7℃



Pump motor H20 Thermal Protector, Power Supply Temperature Controller Switch Fuse 250V 5A 10A 16A 2

Pump motor H20 Thermal Protector, Power Supply Temperature Controller Switch Fuse 250V 5A 10A 16A 3

Pump motor H20 Thermal Protector, Power Supply Temperature Controller Switch Fuse 250V 5A 10A 16A 4



Pump motor H20 Thermal Protector, Power Supply Temperature Controller Switch Fuse 250V 5A 10A 16A 5

BW series is applicable to chargeable battery, ballast, massager, motor,transformer, electric tools,

heat electric appliance and instrument etc.

Pump motor H20 Thermal Protector, Power Supply Temperature Controller Switch Fuse 250V 5A 10A 16A 6

Pump motor H20 Thermal Protector, Power Supply Temperature Controller Switch Fuse 250V 5A 10A 16A 7
