Industrial Head Snap Switch Thermostat Round Copper Bimetal Thermal Snap Switch

Industrial Head Snap Switch Thermostat Round Copper Bimetal Thermal Snap Switch

Industrial Head Snap Switch Thermostat Round Copper Bimetal Thermal Snap Switch
Industrial Head Snap Switch Thermostat Round Copper Bimetal Thermal Snap Switch Industrial Head Snap Switch Thermostat Round Copper Bimetal Thermal Snap Switch Industrial Head Snap Switch Thermostat Round Copper Bimetal Thermal Snap Switch Industrial Head Snap Switch Thermostat Round Copper Bimetal Thermal Snap Switch

Large Image :  Industrial Head Snap Switch Thermostat Round Copper Bimetal Thermal Snap Switch Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: Yusheng
Certification: CQC.TUV,VDE,UL
Model Number: KSD301
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: 1000PCS or 2000PCS Per Carton, Carton Size: 280*270*320mm
Delivery Time: 7-10 work days
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 1,000,000 Pcs Per Month
Detailed Product Description

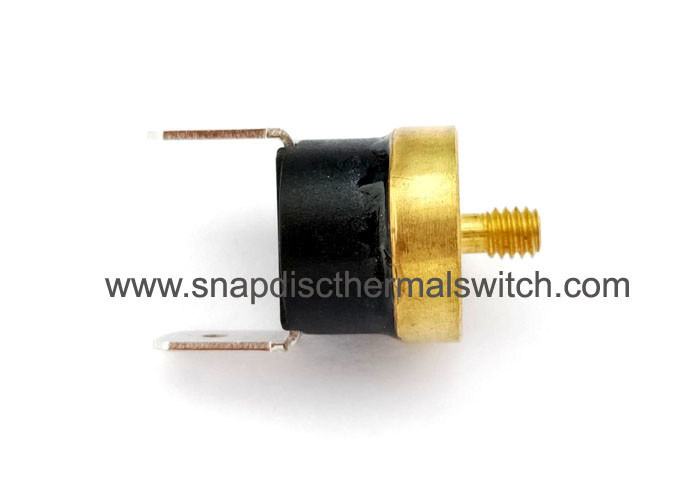

Product Name: Snap Disc Thermal Switch Model: KSD301
Reset Type: Auto Reset Or Manual Reset Rated Volts & Amps: 250V AC 10A/16A
Contact Type: Normally Closed Or Normally Open Temperature Range: 0~250℃
Life Cycle: 100,000 Cycles Insulation Resistance: More Than 100MΩ
Contact Resistance: Less Than 50mΩ Cover: Fixed / Moveable / Screw
Case: Bakelite / Ceramic Diameter Of Bimetal Disc: 12.8 Mm (1/2 Inch)
Frequency: 50/60Hz
High Light:

snap action disc thermostats

,

bimetal snap disc thermostat

M4*6 Round Copper Head KSD301 Snap Disc Thermal Switch for Frostproof closet



Quick Detail:

Model KSD301
Reset Type Auto Reset
  Single Pole,Single Throw(SPST)
Body Material: Bakelite or Ceramic
Rated Voltage & Current 250V AC 10A/16A
Contact Type

Normally Closed(Open on Rise) or Normally Open(Close on Rise)

Operating Temperature Range

0~150℃ (Bakelite Body),0~250℃ (Ceramic Body)

Temperature differentials 8.5~55℃ (difference between off and on temperatures)
Temperature tolerance ±3.0℃, ±5.0℃, ±8.0℃, ±10.0℃
Contact Resistance ≤50mΩ
Insulation Resistance ≥100MΩ
Dielectric Strength ≥1500V
Life Cycle 100,000 Cycles
Certificate CQC,TUV,UL,VDE,ROHS,REACH



Description:



KSD301 series Snap Disc Thermal Switch is a snap-action thermostat with a bi-metal disc as the temeprature sensing element. It can be reseted automatically. Its main working principle is to control the temperature by opening or closing the bi-metal strip. It stays at normally closed/normally open status, it opens/closes when temeprature rising and closes/opens when temperature decreasing. It has the characteristics of snap action,high accuracy, long life cycle.It is widely used in rice cooker, microwave oven, electric water boiler,room heater, egg boiler and electric steamer,etc.



Applications:

● Kitchen Appliances: Rice Cooker, Microwave Oven, Oven, Fryer, Egg Boiler, Electric Steamer etc.

Household Appliances: Electric Water Boiler, Room Heater,Waffle Baker etc.

Industry Appliances: Water Tank, Frostproof Closet, etc.

Industrial Head Snap Switch Thermostat Round Copper Bimetal Thermal Snap Switch 0

Specifications:



1. Dimensional Outline

Industrial Head Snap Switch Thermostat Round Copper Bimetal Thermal Snap Switch 1

Industrial Head Snap Switch Thermostat Round Copper Bimetal Thermal Snap Switch 2

Industrial Head Snap Switch Thermostat Round Copper Bimetal Thermal Snap Switch 3

Industrial Head Snap Switch Thermostat Round Copper Bimetal Thermal Snap Switch 4 Industrial Head Snap Switch Thermostat Round Copper Bimetal Thermal Snap Switch 5



2. BOM

No. Part No. Part Name Material Qty.
1 KSD301-01 Body Plastic 1
2 KSD301-02 Guide Frame Bakelite 1
3 KSD301-03 Cap Copper 1
4 KSD301-04 Bimetal Disc Bimetal 1
5 KSD301-05 Action Rod Ceramic 1
6 KSD301-06 Static Contact Plate Brass 1
7 KSD301-07 Ø3.5static contact point AgCd012/Cu 1
8 KSD301-08 Ø3.5moveable contact point AgCd012/Cu 1
9 KSD301-09 Movable Contact Plate BeCu 1
10 KSD301-10 Short Rivet Red Copper 1
11 KSD301-11 Long Rivet Red Copper 1
12 KSD301-12 6.3*0.8 VerticalTerminal Brass 2



3. Action Temperature Table

Standard Temperature Sheet
KSD301
Action Temperature Reset Temperature Action Temperature Reset Temperature
45±3℃ 35±5℃ 145±5℃ 125±7℃
50±3℃ 40±5℃ 150±5℃ 130±7℃
55±3℃ 45±5℃ 155±5℃ 135±7℃
60±3℃ 50±5℃ 160±5℃ 140±8℃
65±3℃ 50±5℃ 165±6℃ 145±8℃
70±3℃ 55±5℃ 170±6℃ 150±8℃
75±3℃ 60±5℃ 175±6℃ 155±8℃
80±3℃ 65±5℃ 180±7℃ 160±10℃
85±3℃ 70±5℃ 185±7℃ 155±10℃
90±3℃ 75±5℃ 190±7℃ 160±10℃
95±3℃ 80±5℃ 195±7℃ 165±10℃
100±4℃ 85±6℃ 200±8℃ 170±10℃
105±4℃ 85±6℃ 205±8℃ 175±10℃
110±4℃ 90±6℃ 210±8℃ 180±10℃
115±5℃ 95±6℃ 215±10℃ 185±10℃
120±5℃ 100±6℃ 220±10℃ 190±10℃
125±5℃ 105±6℃ 230±10℃ 200±10℃
130±5℃ 110±6℃ 240±10℃ 205±12℃
135±5℃ 115±6℃ 250±10℃ 210±15℃
140±5℃ 120±7℃
Remark :
0-60℃±5℃: Reset Temperature=Action Temperature-10℃
60-120℃±5℃: Reset Temperature=Action Temperature-15℃
120-160℃±5℃: Reset Temperature=Action Temperature-20℃
160-200℃±7℃: Reset Temperature=Action Temperature-25℃
200-250℃(±8℃-10℃): Reset Temperature=Action Temperature-30℃/40℃



Competitive Advantage:

1. Small size and expedient installation

2. High temeprature resistance

3. High reliability

4. Long life cycles

5. ROHS compliant

6. Wide application



Tag:

Bimetal Thermostat,Temperature Switch,Temperature Cutoff Switch, Thermal Cutout Switch,Temperature Controller
