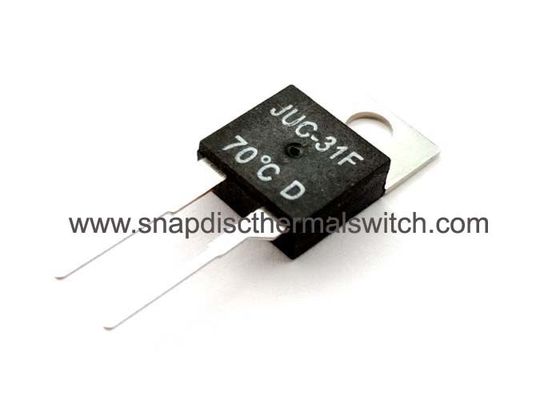

Small Size Subminiature Thermostat High Temperature Resistance 29.3mm*10mm*4.5mm

Small Size Subminiature Thermostat High Temperature Resistance 29.3mm*10mm*4.5mm

Small Size Subminiature Thermostat High Temperature Resistance  29.3mm*10mm*4.5mm
Small Size Subminiature Thermostat High Temperature Resistance  29.3mm*10mm*4.5mm Small Size Subminiature Thermostat High Temperature Resistance  29.3mm*10mm*4.5mm Small Size Subminiature Thermostat High Temperature Resistance  29.3mm*10mm*4.5mm Small Size Subminiature Thermostat High Temperature Resistance  29.3mm*10mm*4.5mm

Large Image :  Small Size Subminiature Thermostat High Temperature Resistance 29.3mm*10mm*4.5mm Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: Yusheng
Certification: CQC,TUV,UL,CE
Model Number: JUC-31F
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: InternationalTO220/Y220 standard package
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000PCS per Month
Detailed Product Description
Model: JUC-31F Contact Load: AC 120V/220V 1A, DC 48V 1A
Contact Type: 1D(normally Closed) Or 1H(normally Open) Life Cycle: 100,000 Times
Weight: Approximately 2grams External Dimension: L*W*H = 29.3mm*10mm*4.5mm
High Light:

miniature bimetallic thermostats

,

subminiature bimetallic thermostat

Long Life Cycles 70 CD JUC-31F Miniature Thermal Switch for Overheat Protection



Quick Detail:



Model JUC-31F
Reset Type Auto Reset
Rated Voltage & Current AC 120V/220V 1A, DC 48V 1A
Contact Type 1D(Normally Closed) or 1H(Normally Open)
AmbientTemperature -55℃ ~+180℃
Temperature differentials 8.5~55℃ (difference between off and on temperatures)
Temperature tolerance ±3.0℃, ±5.0℃, ±8.0℃, ±10.0℃
Circuit Resistance ≤50mΩ
Insulation Resistance ≥100MΩ
Dielectric Strength ≥1500V
Life Cycle 100,000 Cycles
Certificate CQC,TUV,UL,CE



Description:



JUC-31F series Miniature Thermal Switch is a snap-action thermostat with a bi-metal disc as the temeprature sensing element. Its main working principle is to control the temperature by opening or closing the bi-metal strip. It stays at normally closed/normally open status, it opens/closes when temeprature rising and closes/opens when temperature decreasing. It has the characteristics of snap action,high accuracy, long life cycle, high sensitivity, high reliability, small size, light weight, easy installation. JUC-31F Miniature Thermal Switch has been granted national patent, and has passed UL, TUV, CE, CQC, CB and ROHS. It also has passed the 100,000 life test of UL laboratory. It is widely used in printed circuit board equipment, power supply equipment, audio amplifier, welding equipment, automation equipment and instrumentation for temperature control and temperature protection.



Applications:



● Printed circuit board equipment

● Power supply equipment

● Audio amplifier

● Welding equipment

● Automation equipment

● Instrument and apparatus

● Charger

● Switching power supply

● Telecom Power System

● Module power supply

● Medical power supply

● Current rectifier



Specifications:



1. Dimensional Outline



Small Size Subminiature Thermostat High Temperature Resistance  29.3mm*10mm*4.5mm 0



2. Action Temperature Table

Operating temperature Recovery temperature Form of contract point Rated load Contract resistance Insulation resistance Dielectrics voltage-resistance

Testing mode:

Speed of temperature rise and fall

40℃±5℃ 5℃~15℃ 1D,1H 250VAC1A ≤50mΩ ≥100MΩ 1500VAC 5℃~8℃/min
45℃±5℃ 5℃~15℃ 1D,1H 250VAC1A ≤50mΩ ≥100MΩ 1500VAC 5℃~8℃/min
50℃±5℃ 5℃~15℃ 1D,1H 250VAC1A ≤50mΩ ≥100MΩ 1500VAC 5℃~8℃/min
55℃±5℃ 6℃~16℃ 1D,1H 250VAC1A ≤50mΩ ≥100MΩ 1500VAC 5℃~8℃/min
60℃±5℃ 6℃~18℃ 1D,1H 250VAC1A ≤50mΩ ≥100MΩ 1500VAC 5℃~8℃/min
65℃±5℃ 7℃~20℃ 1D,1H 250VAC1A ≤50mΩ ≥100MΩ 1500VAC 5℃~8℃/min
70℃±5℃ 7℃~20℃ 1D,1H 250VAC1A ≤50mΩ ≥100MΩ 1500VAC 5℃~8℃/min
75℃±5℃ 8℃~22℃ 1D,1H 250VAC1A ≤50mΩ ≥100MΩ 1500VAC 5℃~8℃/min
80℃±5℃ 8℃~24℃ 1D,1H 250VAC1A ≤50mΩ ≥100MΩ 1500VAC 5℃~8℃/min
85℃±5℃ 8℃~25℃ 1D,1H 250VAC1A ≤50mΩ ≥100MΩ 1500VAC 5℃~8℃/min
90℃±5℃ 8℃~27℃ 1D,1H 250VAC1A ≤50mΩ ≥100MΩ 1500VAC 5℃~8℃/min
95℃±5℃ 10℃~28℃ 1D,1H 250VAC1A ≤50mΩ ≥100MΩ 1500VAC 5℃~8℃/min
100℃±5℃ 10℃~30℃ 1D,1H 250VAC1A ≤50mΩ ≥100MΩ 1500VAC 5℃~8℃/min
105℃±5℃ 11℃~31℃ 1D,1H 250VAC1A ≤50mΩ ≥100MΩ 1500VAC 5℃~8℃/min
110℃±5℃ 11℃~33℃ 1D,1H 250VAC1A ≤50mΩ ≥100MΩ 1500VAC 5℃~8℃/min
115℃±5℃ 11℃~35℃ 1D,1H 250VAC1A ≤50mΩ ≥100MΩ 1500VAC 5℃~8℃/min
120℃±5℃ 11℃~36℃ 1D,1H 250VAC1A ≤50mΩ ≥100MΩ 1500VAC 5℃~8℃/min



Competitive Advantages:



1. Small size and expedient installation

2. Snap action,high accuracy

2. High temeprature resistance

3. High reliability

4. Long life cycles of 100,000 times

5. ROHS compliant

6. Wide application
