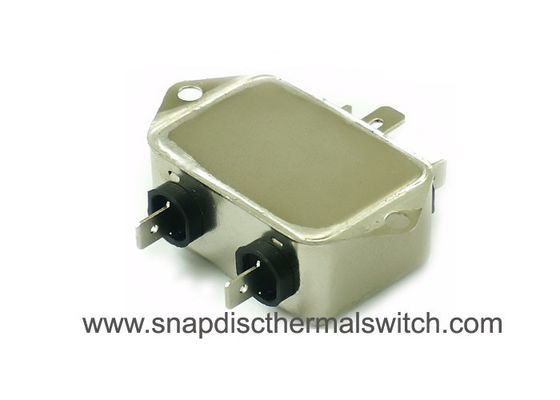

Power Surge Digital EMI EMC Filter Single Phase Single Stage 3A 250V

Power Surge Digital EMI EMC Filter Single Phase Single Stage 3A 250V

Power Surge Digital EMI EMC Filter Single Phase Single Stage 3A 250V
Power Surge Digital EMI EMC Filter Single Phase Single Stage 3A 250V Power Surge Digital EMI EMC Filter Single Phase Single Stage 3A 250V Power Surge Digital EMI EMC Filter Single Phase Single Stage 3A 250V Power Surge Digital EMI EMC Filter Single Phase Single Stage 3A 250V

Large Image :  Power Surge Digital EMI EMC Filter Single Phase Single Stage 3A 250V Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: Yusheng
Certification: CE,ROHS
Model Number: PE2000-1-01
Payment & Shipping Terms:
Minimum Order Quantity: 500PCS
Price: Negotiable
Packaging Details: Inner: blow moulding plate;Outer: strong A-A 5 layer carton packing with shock absorbing PE foam filling to protect the EMI/EMC filter
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1,000,000pcs per month
Detailed Product Description
Model: PE2000-1-01 Type: EMI EMC Filter
Rated Voltage: 120/250VAC Rated Current: 1A~10A
Class: Single Phase Single Stage Nominal Center Frequency: 50/60Hz
Transfer Function: Low Pass Package Tyep: Surface Mount
Outer Package: Carton Line To Line: 1450VDC
Line To Ground: 2000VAC Insertion Loss: 100db
Material: Metal Certificate: CE, ROHS
High Light:

power supply emi filter

,

electromagnetic interference filter

PE2000-1-01 3A250V Power Surge Digital EMI EMC Filter Single Phase Single Stage

Quick Details:


Product Namesingle phase emi filter
ModelPE2000-1-01
Rated Voltage120/250VAC
Rated Current1A~10A
Operating Frequency50/60Hz
Temperature rangeHPF 25/085/21
Test Voltage(1 min)Line to Ground :2000VAC
Line to Line :1450VDC


Description:

EMI MEC filter, also known as electromagnetic interference filter, network filter, network noise filter and so on, or collectively known as EMI filter.The power supply EMI filter is a low-pass filter, which transmits the dc power, 50Hz or 400Hz power to the equipment without attenuation, greatly attenuating the incoming EMI signal through the power supply, and protecting the equipment from its harm.At the same time, EMI signals generated by the equipment can be effectively controlled to prevent it from entering the power grid, polluting the electromagnetic environment and harming other equipment.EMI filter of power supply is an indispensable component to help electromagnetic equipment and systems meet electromagnetic compatibility standards, such as IEC, FCC, VDE, mil-std-461, GB9254 and GB6833.

Specifications:

1. Outline Drawing and Dimensions:
All dimensions in mm; 1 inch=25.4mm

Power Surge Digital EMI EMC Filter Single Phase Single Stage 3A 250V 0


2. Electrical Schematic:
Power Surge Digital EMI EMC Filter Single Phase Single Stage 3A 250V 1

3. Filter Selection Table:

FilterRated Current(A)Rated Voltage(V)Leakage Current(mA)Input/Output Connections
PE2000-1-011120/2500.501
PE2000-3-013120/2500.501
PE2000-6-016120/2500.501
PE2000-10-0110120/2500.501
PE2000-1-031120/2500.503
PE2000-3-033120/2500.503
PE2000-6-036120/2500.503
PE2000-10-0310120/2500.503
PE2001-1-011120/2500.501
PE2001-3-013120/2500.501
PE2001-6-016120/2500.501
PE2001-10-0110120/2500.501
PE2001-1-031120/2500.503
PE2001-3-033120/2500.503
PE2001-6-036120/2500.503
PE2001-10-0310120/2500.503
PE2002-1-011120/2500.501
PE2002-3-013120/2500.501
PE2002-6-016120/2500.501
PE2002-10-0110120/2500.501


4. EMI EMC Filter Packaging:
Packaging Details
1. Inner: blow moulding plate
2. Outer: strong A-A 5 layer carton packing with shock absorbing PE foam filling to protect the EMI/EMC filter
3. Customized packaging acceptable
Port: Shenzhen,China
Power Surge Digital EMI EMC Filter Single Phase Single Stage 3A 250V 2

Application:
1. Electrical and electronic equipments
2. Office automation equipment
3. Datacom equipment
4. Household equipment
5. Medical equipment
6. Consumer goods

Competitive Advantage:
1. General purpose filtering performance
2. Easy and fast chassis mounting
3. Rated currents from 1 to 10A
4. Low leakage current and high quality components ensure the safety and reliability of emi filters
5. Optional medical versions(B type)
6. Various terminal optionas:faston/screw/wire

Tag:
Power supply EMI filter, EMI Power line filter, Power line filter, Noise power line filter, Rejector,
Electromagnetic interference filter, Network filter, Network noise filter
