137 Deg C Bimetal Thermal Switch Termostat KSD301 250V 10A For Temperature Control

137 Deg C Bimetal Thermal Switch Termostat KSD301 250V 10A For Temperature Control

137 Deg C Bimetal Thermal Switch Termostat KSD301 250V 10A For Temperature Control
137 Deg C Bimetal Thermal Switch Termostat KSD301 250V 10A For Temperature Control 137 Deg C Bimetal Thermal Switch Termostat KSD301 250V 10A For Temperature Control 137 Deg C Bimetal Thermal Switch Termostat KSD301 250V 10A For Temperature Control 137 Deg C Bimetal Thermal Switch Termostat KSD301 250V 10A For Temperature Control

Large Image :  137 Deg C Bimetal Thermal Switch Termostat KSD301 250V 10A For Temperature Control Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: Yusheng
Certification: CQC. TUV, VDE, UL, ROHS, REACH,CB
Model Number: KSD301

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: 1000PCS or 2000PCS Per Carton, Carton Size: 280*270*320mm
Delivery Time: 7-10 work days
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000 Pcs Per Month
Detailed Product Description
Product Name: Snap Disc Thermal Switch Model: KSD301
Reset Type: Manual Reset Rated Volts & Amps: 250V AC 10A/16A, 125V AC 10A/16A
Contact Type: Normally Closed Or Normally Open Temperature Range: 0~250℃
Diameter Of Bimetal Disc: 12.8 Mm (1/2) Cover: Fixed/ Moveable / Screw
Life Cycle: 100,000 Cycles Insulation Resistance:: More Than 100MΩ
Contact Resistance: Less Than 50mΩ Case: Bakelite / Ceramic
High Light:

snap action disc thermostats

,

bimetal snap disc thermostat



250V 10A KSD301 137 Deg C Bimetal Thermal Switch for Temperature Control



Quick Detail:

Model KSD301
Reset Type Manual Reset
  Single Pole,Single Throw(SPST)
Body Material: Bakelite or Ceramic
Rated Voltage & Current 250V AC 10A/16A
Contact Type

Normally Closed(Open on Rise) or Normally Open(Close on Rise)

Operating Temperature Range

0~150℃ (Bakelite Body),0~250℃ (Ceramic Body)

Temperature differentials 8.5~55℃ (difference between off and on temperatures)
Temperature tolerance ±3.0℃, ±5.0℃, ±8.0℃, ±10.0℃
Contact Resistance ≤50mΩ
Insulation Resistance ≥100MΩ
Dielectric Strength ≥1500V
Life Cycle 100,000 Cycles
Certificate CQC,TUV,UL,VDE,ROHS,REACH



Description:

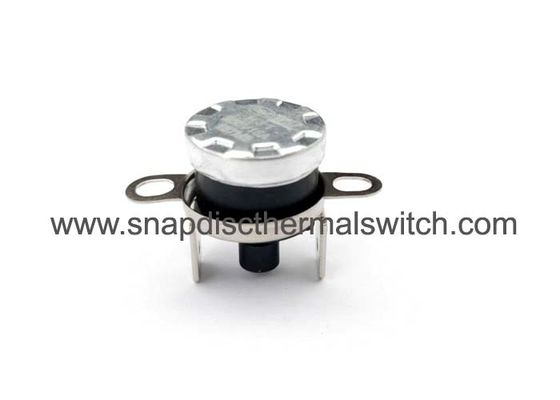

H31 snap dics thermal switch is a kind of miniature hermetically sealed bimetal temperature limiter (1/2" disc).   It is of single-pole single-throw structure and works under resistive load. It is a snap-action thermostat with a bi-metal disc as the temeprature sensing element. It is manual reset type. Its main working principle is to control the temperature by opening the bi-metal strip. It stays at normally closed status, it opens when temeprature rising, and it will be reseted by manual.This safety limiter is in wide use in a great variety of compact type home appliances, such as coffee maker, water dispenser, toaster, microwave oven, electric pad and portable icebox etc., to provide temperature control or temperature protection.(KSD301)

137 Deg C Bimetal Thermal Switch Termostat KSD301 250V 10A For Temperature Control 0



Specifications:



1. Dimensional Outline



137 Deg C Bimetal Thermal Switch Termostat KSD301 250V 10A For Temperature Control 1 137 Deg C Bimetal Thermal Switch Termostat KSD301 250V 10A For Temperature Control 2
137 Deg C Bimetal Thermal Switch Termostat KSD301 250V 10A For Temperature Control 3 137 Deg C Bimetal Thermal Switch Termostat KSD301 250V 10A For Temperature Control 4



2. Technical Requirements



Model H31
OFF Temprature  137±5℃
Rated Voltage & Current 250V AC 10A
Reset Type Manual Reset
Contact Type Normally Closed
Body Material Bakelite
Bracket Without Bracket
Terminal 6.3*0.8mm, Horizontal
Test Voltage ≥ 1500V / min (Normality)
Product Executive Standard:

UL873, CSA C22.2 NO 2493,EN60730-1 2000+AⅡ, EN60730-2-9:2002,

GB14536.1-2008 idt IEC 730-1, GB14536.10-2008 idt IEC 730-2-9-1992,



3. Action Temperature Table

Standard Temperature Sheet
KSD301
Action Temperature Reset Temperature Action Temperature Reset Temperature
45±3℃ 35±5℃ 145±5℃ 125±7℃
50±3℃ 40±5℃ 150±5℃ 130±7℃
55±3℃ 45±5℃ 155±5℃ 135±7℃
60±3℃ 50±5℃ 160±5℃ 140±8℃
65±3℃ 50±5℃ 165±6℃ 145±8℃
70±3℃ 55±5℃ 170±6℃ 150±8℃
75±3℃ 60±5℃ 175±6℃ 155±8℃
80±3℃ 65±5℃ 180±7℃ 160±10℃
85±3℃ 70±5℃ 185±7℃ 155±10℃
90±3℃ 75±5℃ 190±7℃ 160±10℃
95±3℃ 80±5℃ 195±7℃ 165±10℃
100±4℃ 85±6℃ 200±8℃ 170±10℃
105±4℃ 85±6℃ 205±8℃ 175±10℃
110±4℃ 90±6℃ 210±8℃ 180±10℃
115±5℃ 95±6℃ 215±10℃ 185±10℃
120±5℃ 100±6℃ 220±10℃ 190±10℃
125±5℃ 105±6℃ 230±10℃ 200±10℃
130±5℃ 110±6℃ 240±10℃ 205±12℃
135±5℃ 115±6℃ 250±10℃ 210±15℃
140±5℃ 120±7℃
Remark :
0-60℃±5℃: Reset Temperature=Action Temperature-10℃
60-120℃±5℃: Reset Temperature=Action Temperature-15℃
120-160℃±5℃: Reset Temperature=Action Temperature-20℃
160-200℃±7℃: Reset Temperature=Action Temperature-25℃
200-250℃(±8℃-10℃): Reset Temperature=Action Temperature-30℃/40℃



Applications:

● Rice Cooker, Microwave Oven, Oven, Fryer, Egg Boiler, Electric Steamer etc.

●  Electric Water Boiler, Room Heater,Waffle Baker etc.

137 Deg C Bimetal Thermal Switch Termostat KSD301 250V 10A For Temperature Control 5

137 Deg C Bimetal Thermal Switch Termostat KSD301 250V 10A For Temperature Control 6



Competitive Advantage:



1. Small size and easy to installation

2. High temeprature resistance

3. High reliability, fast reaction

4. Long life cycles

5. ROHS compliant

6. Wide application

7. Can be customized



Tag:



Snap Disk Thermostat Switch, Thermal Disk Switch, Snap Switch Thermostat
