High Accyrancy Bimetal Thermal Protector Large Current Long Life Cycles

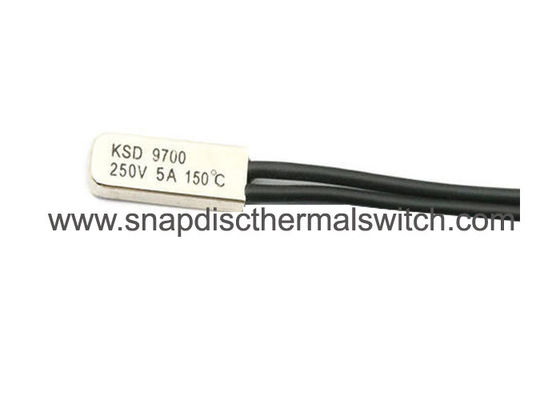

115 Deg C 250V 5A Miniature Size KSD9700 Bimetal Thermal Protector with CQC, TUV


Quick Detail:


Description:


Model KSD9700Bimetal Thermal Protector is composed of high sensitive disk-shaped bimetallic element,moveable contact,static contact plate, fixed baseplate, moveable spring plate, case and temperature resistance lead wire.The bimetallic strip is fixed on the baseplate, which can maintain the consistency of disconnection and reset temperature after long-term use. Its main working principle is to control the temperature by opening or closing the bi-metal strip. It stays at normally closed/normally open status, it opens/closes when temeprature rising and closes/opens when temperature decreasing.It protects the device overheating and burning out. At normal temperature, the moveable contact and the static contact are in the closed state, the circuit is on.When the use of electrical failure, the temperature rise to the rated disconnect temperature value of the product, the bimetal element heat produced internal stress rapid action, it push the contact and cut off the power supply, then the electrical appliances stop working, so as to play a protective role.When the temperature of the protected appliance drops to the safe temperature, switch on the power again and the appliance resumes working.


Specifications:

1. Dimensional Outline


2. Structural Drawing

Plastic Case Type	Metal Case Type
1. Lead wire 2. Epoxy Resin 3. Stationary Contact Plate 4. Movable Contact 5. Movable Spring Plate 6. Bimetallic Strip  7. Plastic Case 8. Insulation Block 9. Baseplate	1. Lead 2.Epoxy Resin 3. Stationary Contact Plate 4. Movable Contact  5. Movable Spring Plate 6. Bimetallic Strip  7. Metal Case 8. Insulation Block 9. Baseplate 10. Insulating Tube


3. Action Temperature Table

Applications:

electric motor, transformer, recahrgeable battery, fan motor, conditioner motor, washing machine motor,
electric blanket, water pump motor, clothes dryer motor, transformer, ballast, power tools, microwave motor,
lampblack motor, rechargeable battery, liminator, heating pad, automatic fire-extinguishing System,

cooling system, electric tools, etc.

Competitive Advantage:

1. Miniature size and expedient installation
2. High temeprature resistance
3. Safe and reliable

4. High sensitivity

5. Low contact resistance
5. life cycles more than 10,000 times
6. ROHS compliant
7. Wide application

8. There are two types of normally closed and normally open can meet customers' different requirements

8. Anti-vacuum dipping process, can be dipped with the motor

9. The length and specifications of lead wire can be customized
