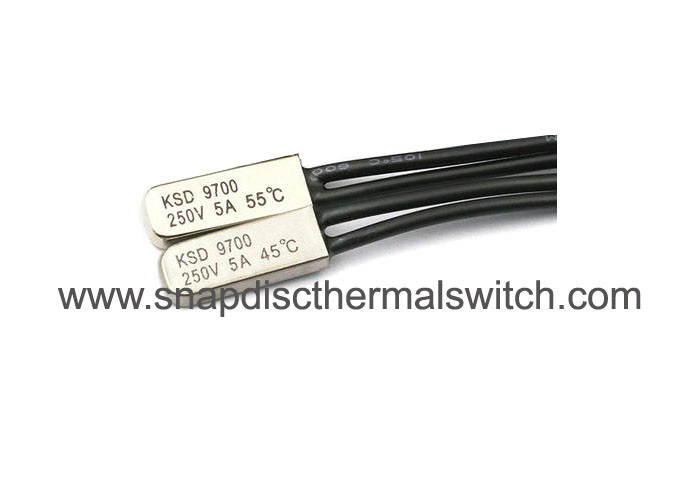

Temperature Controlled Thermal Overload Protector Switch Micro Thermostat

Temperature Controlled Thermal Overload Protector Switch Micro Thermostat

Temperature Controlled Thermal Overload Protector Switch Micro Thermostat
Temperature Controlled Thermal Overload Protector Switch Micro Thermostat Temperature Controlled Thermal Overload Protector Switch Micro Thermostat Temperature Controlled Thermal Overload Protector Switch Micro Thermostat Temperature Controlled Thermal Overload Protector Switch Micro Thermostat

Large Image :  Temperature Controlled Thermal Overload Protector Switch Micro Thermostat Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: Yusheng
Certification: CQC,TUV,UL
Model Number: KSD9700
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: 4000pcs per Carton, Carton Size:280*260*320mm
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 2,000,000PCS per Month
Detailed Product Description
Model: KSD9700 Rated Volts & Amps: 250V AC 5A/10A
Contact Type: Normally Closed Or Normally Open Life Cycle: 10,000 Cycles
Temperature Range: 40-150℃ Lead Wire: UL3135 AWG18, AWG20, AWG22, Or Customized
Case: Metal Or Plastic Certificate: CQC, UL ,TUV
High Light:

thermal overload protector

,

motor thermal protector

Temperature Controlled KSD9700 Bimetal Thermal Protector for Rechargeable Battery


Quick Detail:



Model K9700
Reset Type Auto Reset
  Single Pole,Single Throw(SPST)
Case Material: Plastic or Metal
Rated Voltage & Current 250V AC 5A/10A
Contact Type Normally Closed(Open on Rise) or Normally Open(Close on Rise)
Operating Temperature Range 45~150℃
Temperature tolerance ±5.0℃
Contact Resistance ≤50mΩ
Insulation Resistance ≥100MΩ
Dielectric Strength ≥1500V
Life Cycle 10,000 Cycles
Certificate CQC,TUV,UL,VDE,ROHS,REACH


Description:


KSD9700 type bimetal thermal protector is using a special shape of double metal piece without auxiliary mechanism. The status of metal piece has the fast change is only depended on the self temperature sensing of the metal piece and the current thermal reaction. It makes the contact realize the cut off the power automatically and get through the power. The over heating protection and overload protection will be raised. KSD9700 type thermal protector can be applied for transformers; battery; lighting electrics; cleaning machine; water pump; electric tools; electric heating pad; and the household appliances.



Work Principle:
KSD9700 typebimetal thermal protector is using the double metal piece as e temperature sensing element. When the electrics work normally, the double piece is at the free status, the contact is at close/break off position. When the temperature rises to the action temperature, the double metal piece acts fast by the inside force caused by heating, open/close the contact, cut off/get through the power, the temperature protection function is raised. When the temperature lows to the reset temperature, the contact closes/breaks off automatically and recovery to normal work status.


Specifications:

1. Dimensional Outline



Temperature Controlled Thermal Overload Protector Switch Micro Thermostat 0

Temperature Controlled Thermal Overload Protector Switch Micro Thermostat 1



2. Structural Drawing

Plastic Case Type Metal Case Type

Temperature Controlled Thermal Overload Protector Switch Micro Thermostat 2
1. Lead wire

2. Epoxy Resin

3. Stationary Contact Plate
4. Movable Contact

5. Movable Spring Plate
6. Bimetallic Strip

7. Plastic Case

8. Insulation Block

9. Baseplate

Temperature Controlled Thermal Overload Protector Switch Micro Thermostat 3

1. Lead 2.Epoxy Resin

3. Stationary Contact Plate

4. Movable Contact

5. Movable Spring Plate

6. Bimetallic Strip

7. Metal Case

8. Insulation Block

9. Baseplate

10. Insulating Tube

Temperature Controlled Thermal Overload Protector Switch Micro Thermostat 4

Temperature Controlled Thermal Overload Protector Switch Micro Thermostat 5


3. Action Temperature Table



KSD9700
Action Temperature Reset Temperature Action Temperature Reset Temperature
40±5℃ ≥27℃ 110±5℃ 73±15℃
45±5℃ ≥27℃ 110±5℃ 73±15℃
50±5℃ ≥30℃ 115±5℃ 76±15℃
55±5℃ ≥30℃ 120±5℃ 80±15℃
60±5℃ 40±15℃ 125±5℃ 83±15℃
65±5℃ 43±15℃ 130±5℃ 86±15℃
70±5℃ 46±15℃ 135±5℃ 90±15℃
75±5℃ 50±15℃ 140±5℃ 93±15℃
80±5℃ 53±15℃ 145±5℃ 96±15℃
85±5℃ 56±15℃ 150±5℃ 100±15℃
90±5℃ 60±15℃
95±5℃ 63±15℃
100±5℃ 67±15℃
105±5℃ 70±15℃
Remark :
Reset Temperature: 2/3 of Action Temperature, tolerance is±15℃ or customized.



Applications:

1. Shaded Pole Motor
2. Permanent split capacitor motor
3. Fluorescent lighting ballasts
4. HID ballasts
5. Transformer
6. Recessed lighting fixtures
7. Battery packs
8. Vacuum cleaners
9. Automotive accessory motors, solenoids, PC boards



Competitive Advantages:

1. Clubs-shape contact, jointing better with spot welding
2. Small size and expedient installation

3. Positive make and break with snap-action disc

4. Various resistances of bimetal available
5.  High sensitivity

6.  Low contact resistance
7.  Repeatable temperature performance over life
8.  ROHS compliant
9.  Wide application

10.  Gasketed case suitable for most impregnation processes

11.  There are two types of normally closed and normally open can meet customers' different requirements

12.  The length and specifications of lead wire can be customized
