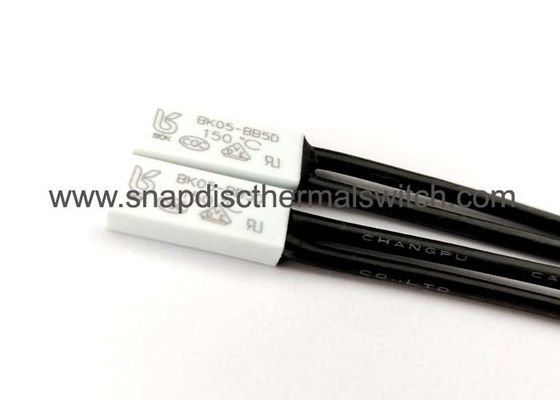

250V 150 Deg C BK05-BB5D Bimetal Thermal Protector For Compressor With UL

250V 150 Deg C BK05-BB5D Bimetal Thermal Protector For Compressor With UL

250V 150 Deg C BK05-BB5D Bimetal Thermal Protector For Compressor With UL
250V 150 Deg C BK05-BB5D Bimetal Thermal Protector For Compressor With UL 250V 150 Deg C BK05-BB5D Bimetal Thermal Protector For Compressor With UL 250V 150 Deg C BK05-BB5D Bimetal Thermal Protector For Compressor With UL 250V 150 Deg C BK05-BB5D Bimetal Thermal Protector For Compressor With UL

Large Image :  250V 150 Deg C BK05-BB5D Bimetal Thermal Protector For Compressor With UL Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: Yusheng
Certification: CQC,TUV,UL
Model Number: BK05-BB5D
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: 4000pcs per Carton, Carton Size:280*260*320mm
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union
Supply Ability: 2,000,000PCS per Month
Detailed Product Description
Name: Bimetal Thermal Protector Model: BK05-BB5D
Contact Type: Normally Closed Or Normally Open Temperature Range: 30-155℃
Case: Metal Rated Volts & Amps: 250V AC 5A/10A
Certificate: CQC, UL ,TUV Lead Wire: UL3135 AWG18, AWG20, AWG22, Or Customized
Life Cycle: 10,000 Cycles Lead Wire Length: L1=L2=70mm(standard), Can Be Customized
High Light:

motor thermal protector

,

thermal protection switch



250V 150 Deg C BK05-BB5D Bimetal Thermal Protector for Compressor with UL


Quick Detail:



Model BK05-BB5D
Reset Type Auto Reset
  Single Pole,Single Throw(SPST)
Case Material: Plastic or Metal
Rated Voltage & Current DC12V/12A DC24V/10A,AC125V/8A AC250V/5A
Contact Type Normally Closed(Open on Rise) or Normally Open(Close on Rise)
Operating Temperature Range 30~155℃
Temperature tolerance ±3/±5℃
Contact Resistance ≤50mΩ
Insulation Resistance ≥100MΩ
Dielectric Strength ≥1500V
Life Cycle 10,000 Cycles
Certificate CQC,TUV,UL,VDE,ROHS,REACH


Description:

BK05-BB1D bimetal thermal protector uses high sensitive disk-shaped bimetal strip as the temperature-sensing element. It is composed of bimetal strip, moveable contact, stationary contact piece, fixed base, moveable spring piece, case and temperature resistance lead wire.The bimetal strip is fixed on the base, which can maintain the consistency of disconnection and reset temperature after long-term use. Its' main function is overheating,  overload protection.


Working principle:  when the temperature rises to a certain value, the bimetal strip will instantly jump off and the contact will move quickly to disconnect the circuit. When the temperature falls to a certain value, the bimetal strip will be reset and the contact will return to the original state to achieve the purpose of switching the circuit. Its light weight, compact design maintains the lightweight, sealed housing of the whole device, and is resistant to drying, maintaining the accuracy and high reliability of disconnection and reset throughout its life.



Product features: BK05-BB1D theraml cutoff switch is a temperature control switch developed by imported thermal bimetal, with small size, rapid action, accurate temperature control and long life cycle.



Specifications:

1. Dimensional Outline

250V 150 Deg C BK05-BB5D Bimetal Thermal Protector For Compressor With UL 0
250V 150 Deg C BK05-BB5D Bimetal Thermal Protector For Compressor With UL 1


2. Structural Drawing

250V 150 Deg C BK05-BB5D Bimetal Thermal Protector For Compressor With UL 2



No. Part Name Material Qty
1 Lead wire 0.75mm² black silicon wire 2
2 Sealing Epoxy resin A few
3 Insulation blcok Ceramic 1
4 Moveable contact AgNi10/Cu 1
5 Moveable spring piece Beryllium bronze 1
6 Case Plastic 1
7 Stationary Contact piece AgNi10/Cu 1
8 Base Brass H62 1
9 Bimetal strip BR-1 1



250V 150 Deg C BK05-BB5D Bimetal Thermal Protector For Compressor With UL 3

250V 150 Deg C BK05-BB5D Bimetal Thermal Protector For Compressor With UL 4

250V 150 Deg C BK05-BB5D Bimetal Thermal Protector For Compressor With UL 5


3. Action Temperature Table



No. Action Temperature Reset Temperature No. Action Temperature Reset Temperature

30

30±3℃ ≥20 95 95±5℃ 70±15℃
35 35±3.5℃ ≥25 100 100±5℃ 70±15℃
40 40±4℃ ≥30 105 105±5℃ 75±15℃
45 45±4.5℃ ≥33 110 110±5℃ 75±15℃
50 50±5℃ ≥35 115 115±5℃ 80±15℃
55 55±5℃ 42±6℃ 120 120±5℃ 85±15℃
60 60±5℃ 45±8℃ 125 125±5℃ 85±15℃
65 65±5℃ 48±10℃ 130 130±5℃ 90±15℃
70 70±5℃ 50±12℃ 135 135±5℃ 95±15℃
75 75±5℃ 53±14℃ 140 140±5℃ 100±15℃
80 80±5℃ 55±15℃ 145 145±5℃ 100±15℃
85 85±5℃ 60±15℃ 150 150±5℃ 105±15℃
90 90±5℃ 65±15℃ 155 155±5℃ 110±15℃



Applications:

1. Coils

2. Fans

3. Blower

4. Compressor

5. Pump

6. Fractional horsepower motors

7. Small power transformers

8. Household appliances

9. Computer communication equipment

10. Air conditioner motors

11. Vacuum cleaners

12. Electric stove

13. Electric heater

14. Soybean milk machine

15. Electric heating belt

16. Health care equipment

250V 150 Deg C BK05-BB5D Bimetal Thermal Protector For Compressor With UL 6

250V 150 Deg C BK05-BB5D Bimetal Thermal Protector For Compressor With UL 7



Competitive Advantages:

1. Fast temperature sensing

2. Accurate temperature control

3. Large control current

4. Low contact resistance

5. Safe and reliable

6. Small size, easy to install

7. No arc discharge

8. Long life cylces more than 10,000 times

9.  Anti-vacuum dipping process, can be dipped with the motor

10. There are two types of normally closed and normally open can meet customers' different requirements

11. The length and specifications of lead wire can be customized

12. Substitute SENSATA 7AM,17AM,SEKI St22 series
