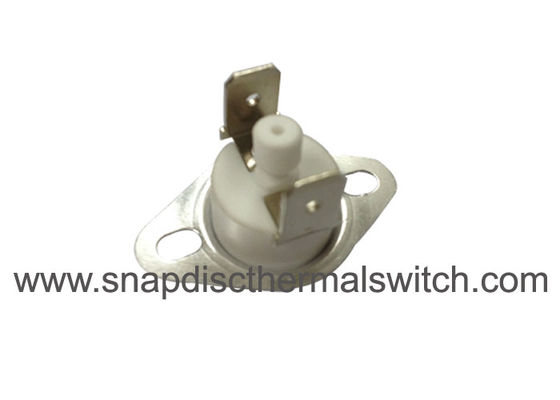

10A 16A 250V Manual Auto Reset KSD301 Bimetal Thermal Thermostats for Coffee Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Model: | KSD301 | Reset Type: | Auto Reset, Manual Reset |
|---|---|---|---|
| Rated Volts & Amps: | 250V AC 10A/16A | Contact Type: | Normally Closed Or Normally Open |
| Temperature Range: | 0～270℃ | Cover: | Fixed |
| Tolerance: | +/-5 C For Open Action(Optional +/-3 C Or Less), +/-5C | Life Cycle: | 100,000 Cycles |
10A 16A 250V Manual Auto Reset KSD301 Bimetal Thermal Switch for Coffee Machine
Quick Detail:
| Model | KSD301 |
| Reset Type | Manual Reset |
| Single Pole,Single Throw(SPST) | |
| Body Material: | Plastic / Bakelite |
| Rated Voltage & Current | 250V AC 10A/16A |
| Contact Type |
Normally Closed(Open on Rise) or Normally Open(Close on Rise) |
| Operating Temperature Range |
0～150℃ (Bakelite Body),0～250℃ (Ceramic Body) |
| Temperature differentials | 8.5～55℃ (difference between off and on temperatures) |
| Temperature tolerance | ±3.0℃, ±5.0℃, ±8.0℃, ±10.0℃ |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | ≥1500V |
| Life Cycle | 100,000 Cycles |
| Certificate | CQC,TUV,UL,VDE,ROHS,REACH |
Decription:
The KSD301 series of jump thermostats are small bimetal thermostats, which are temperature relays. It uses the principle of instantaneous jumping of the disc-type bimetal disc under the action of temperature, the principle of instantaneous jumping, through the action of the mechanism, so that the contacts quickly act, to break or turn on the circuit. The purpose of the device is to break or switch on the circuit. Its working temperature is fixed, no adjustment is required; the action is reliable and crisp, the arc is small; the service life is long; radio interference is small.
Test method:
Sample is connected to the fixture of the equipment,and placed into the test equipment (Hot current of air in the space of test should be equipped with a stirrer and temperature is controllable).A detect current about 10mA(no more then 100mA)is passed through the sample and a thermometer is placed junction to the sample to monitor the opening temperature .The temperature of the test equipment is raised at the rate of 0.5～1℃ per minute until the sample functioned.
Working Principle of KSD301 Series Temperature Thermostat:
When the electrical appliance works normally, the bimetallic sheet is in the free state and the contact is in the closed / open state. When the temperature reaches the operating temperature, the contact is opened / closed, and the circuit is cut / closed, so as to control the temperature. When the electric appliance cools to the reset temperature, the contact will automatically close / open and return to the normal working state.
Kindly Note:
Specifications:
1. Dimensional Outline
|
|
2. BOM
| No. | Part No. | Part Name | Qty. |
| 1 | KSD301-1 | Unmoveable piece | 1 |
| 2 | KSD301-2 | Spring Piece piece | 1 |
| 3 | KSD301-3 | Base | 1 |
| 4 | KSD301-4 | 6.3mm Vertical Terminal | 2 |
| 5 | KSD301-5 | Stationary Contact Ø3.5 | 1 |
| 6 | KSD301-6 | Moveable Contact Ø3.5 | 1 |
| 7 | KSD301-7 | Long Rivet(9.0) | 1 |
| 8 | KSD301-8 | Short Rivet(5.0) | 1 |
| 9 | KSD301-9 | Push rod | 1 |
| 10 | KSD301-10 | Reset Button | 1 |
| 11 | KSD301-11 | Guide frame | 1 |
| 12 | KSD301-12 | M4*0.5*6 hexagon copper head | 1 |
| 13 | KSD301-13 | Bimetal disc | 1 |
| 14 | KSD301-14 | Action rod | 1 |
3. Action Temperature Table
| Standard Temperature Sheet | |||||||||
| KSD301 | |||||||||
| Action Temperature | Reset Temperature | Action Temperature | Reset Temperature | ||||||
| 45±3℃ | 35±5℃ | 145±5℃ | 125±7℃ | ||||||
| 50±3℃ | 40±5℃ | 150±5℃ | 130±7℃ | ||||||
| 55±3℃ | 45±5℃ | 155±5℃ | 135±7℃ | ||||||
| 60±3℃ | 50±5℃ | 160±5℃ | 140±8℃ | ||||||
| 65±3℃ | 50±5℃ | 165±6℃ | 145±8℃ | ||||||
| 70±3℃ | 55±5℃ | 170±6℃ | 150±8℃ | ||||||
| 75±3℃ | 60±5℃ | 175±6℃ | 155±8℃ | ||||||
| 80±3℃ | 65±5℃ | 180±7℃ | 160±10℃ | ||||||
| 85±3℃ | 70±5℃ | 185±7℃ | 155±10℃ | ||||||
| 90±3℃ | 75±5℃ | 190±7℃ | 160±10℃ | ||||||
| 95±3℃ | 80±5℃ | 195±7℃ | 165±10℃ | ||||||
| 100±4℃ | 85±6℃ | 200±8℃ | 170±10℃ | ||||||
| 105±4℃ | 85±6℃ | 205±8℃ | 175±10℃ | ||||||
| 110±4℃ | 90±6℃ | 210±8℃ | 180±10℃ | ||||||
| 115±5℃ | 95±6℃ | 215±10℃ | 185±10℃ | ||||||
| 120±5℃ | 100±6℃ | 220±10℃ | 190±10℃ | ||||||
| 125±5℃ | 105±6℃ | 230±10℃ | 200±10℃ | ||||||
| 130±5℃ | 110±6℃ | 240±10℃ | 205±12℃ | ||||||
| 135±5℃ | 115±6℃ | 250±10℃ | 210±15℃ | ||||||
| 140±5℃ | 120±7℃ | ||||||||
| Remark : | |||||||||
| 0-60℃±5℃: Reset Temperature=Action Temperature-10℃ | |||||||||
| 60-120℃±5℃: Reset Temperature=Action Temperature-15℃ | |||||||||
| 120-160℃±5℃: Reset Temperature=Action Temperature-20℃ | |||||||||
| 160-200℃±7℃: Reset Temperature=Action Temperature-25℃ | |||||||||
| 200-250℃(±8℃-10℃): Reset Temperature=Action Temperature-30℃/40℃ | |||||||||
Applications:
The Feature of 10A 16A 125V 250V Manual Automatic Switchable Reset Thermal Magnetic Trip KSD301 Series Thermostat Protector Switch for Small Appliances :
【With metal cap】This wing temperature sensor features stable performance, high precision, small in size, light weight, high reliability, long service life and low interference to wireless. KSD301 Thermostat has double metal chip, speed dynamic type, sensitive, reliable, stable action temperature, no arc phenomenon. 【High sensitivity】High sensitivity and reliability of pins. What’s more, there are some engraved numbers and letter on the metal cap for the size recognition. No fluid is allowed to submerge inside the thermal control switch and cracks on the cap is unusable. 【Intelligent control】The thermostat has a built-in intelligent control panel, which can be adjusted by pressing the button. it is very easy to operate and does not require complicated operations. 【Professional design】The thermostat switch is designed to turn on and off automatically, which makes it easier to control the temperature of the thermostat.
Tag:
Bimetal Thermal Switch, Snap Action Temperature Switch, Thermal Snap Switch
