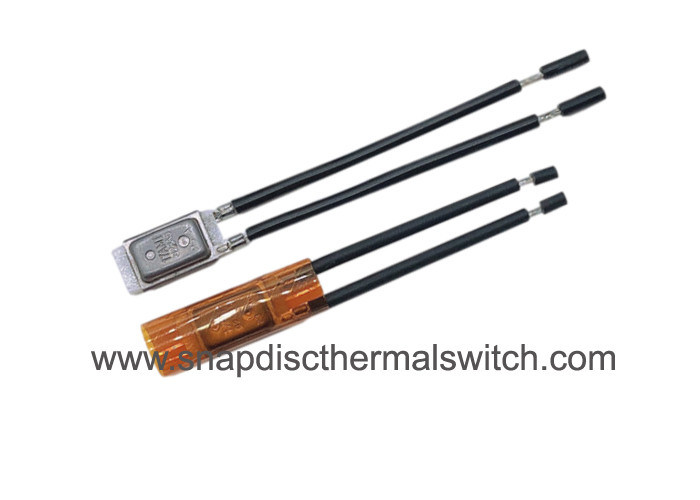

Surface Mount Normally Closed 17AM Electric Motor Thermal Switch

Surface Mount Normally Closed 17AM Electric Motor Thermal Switch

Surface Mount Normally Closed 17AM Electric Motor Thermal Switch
Surface Mount Normally Closed 17AM Electric Motor Thermal Switch Surface Mount Normally Closed 17AM Electric Motor Thermal Switch Surface Mount Normally Closed 17AM Electric Motor Thermal Switch Surface Mount Normally Closed 17AM Electric Motor Thermal Switch

Large Image :  Surface Mount Normally Closed 17AM Electric Motor Thermal Switch Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: Yusheng
Certification: CQC, UL, VDE, CB, KC,SGS
Model Number: 17AM-K
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: 2000PCS per Carton,Carton size 280*270*320mm
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000PCS per Month
Detailed Product Description
Model: 17AM-K Name: Electric Motor Thermal Switch
Operating Temperature: 50℃~180℃ Certificate: CQC, UL, VDE, CB, KC,SGS
Reset Type: Automatic Reset Lead Wire: UL3135 AWG18 Black Color Or Customized
Rated Current: 9A, 10A, 16A, 20A, 22A Rated Voltage: 250V AC, 16V DC,125V AC
Function: Temperature Control Mounting: Surface Mount
Life Cycle: 10,000 Cycles
High Light:

17AM Electric Motor Thermal Switch

,

Surface Mount Electric Motor Thermal Switch

,

17AM Pump Thermal Switch

17AM Motor and Pump Thermal Switch Normally Closed for Overload Protection




Quick Detail:



Model

17AM-K

Operating Temperature 50℃~180℃
Highest Protection Temperature 180℃
Operating Temperature Tolerance ±5℃
Special Requirement ±2℃

Electrical Rating

CB/VDE: 250VAC9A 16VDC/20A
UL/CUL: 125VAC 22A
CQC: 250VAC9A

Working dielectric strength 720Vac 10Ma 1S
Basic dielectric strength 2000Vac 10Ma 1S
Contact Resistance ≤50mΩ
Life Cycle 10,000 cycles
Certificate CQC,UL/CUL,CB,VDE,ROHS


Description:

Surface Mount Normally Closed 17AM Electric Motor Thermal Switch 0


17AM series thermal protector

17AM thermal protector working principle of transformer temperature protector,current throung the double metal reeds and two contacts,Once the electrical working is abnormal and cause to high temperature or high current.the over heat of the equipment will cause the bimetal promptly action and cut off the power.when the temp down to reset temp.the contact will get on again.(PTC model must power off)



17AM temperature protector with special bimetal reeds,suits series of wide application,reliable performance.it is a miniature,fast action,thermal dynamic device,in thermal protection science and technology field,it is a widely used protection components.



Switch Actions



Automatic Reset-Can be built to either open or close its contacts on temperature rise.

Manual Reset-17am+PTC model,when temp rise to setting temp point,its cut off and after temp donw to the reset range and power off,it will reset by itself.



Application:



Motors, Transformers, Battery, Surface electrical, Vacuum cleaning machine, electric applainces, water pump, LED Light

Electric Blanket, etc.

Surface Mount Normally Closed 17AM Electric Motor Thermal Switch 1

Surface Mount Normally Closed 17AM Electric Motor Thermal Switch 2

Surface Mount Normally Closed 17AM Electric Motor Thermal Switch 3

Specifications:

1. Structure and Dimensions

Surface Mount Normally Closed 17AM Electric Motor Thermal Switch 4
Surface Mount Normally Closed 17AM Electric Motor Thermal Switch 5



2. Electricalprinciple chart

Self Hold Electric Motor Thermal Switch Manual Reset Temperature Cutoff 4

3. Characteristic

Surface Mount Normally Closed 17AM Electric Motor Thermal Switch 7

3. Action Temperature Table

17AM-K
Model Code Off Temperature (℃) relevant abroad model code Model Off Temperature (℃) relevant abroad model code
17AM-K 050 50   17AM-K 120 120 17AM 031
17AM-K 055 55   17AM-K 125 125 17AM 032
17AM-K 060 60   17AM-K 130 130 17AM 033
17AM-K 065 65 17AM 020 17AM-K 135 135 17AM 034
17AM-K 070 70 17AM 021 17AM-K 140 140 17AM 035
17AM-K 075 75 17AM 022 17AM-K 145 145 17AM 036
17AM-K 080 80 17AM 023 17AM-K 150 150 17AM 037
17AM-K 085 85 17AM 024 17AM-K 155 155 17AM 038
17AM-K 090 90 17AM 025 17AM-K 160 160
17AM-K 095 95 17AM 026 17AM-K 165 165
17AM-K 100 100 17AM 027 17AM-K 170 170
17AM-K 105 105 17AM 028 17AM-K 180 180
17AM-K 110 110 17AM 029
17AM-K 115 115 17AM 030
Remark :
Reset Temperature: 2/3 of Action Temperature, tolerance is±15℃ or customized.
